Technical Specifications
|
Khoom npe |

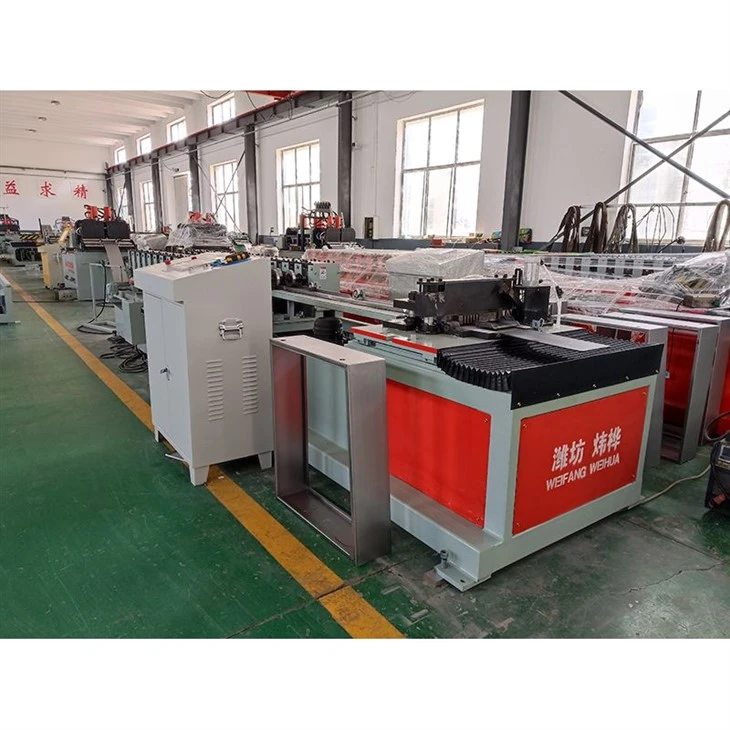

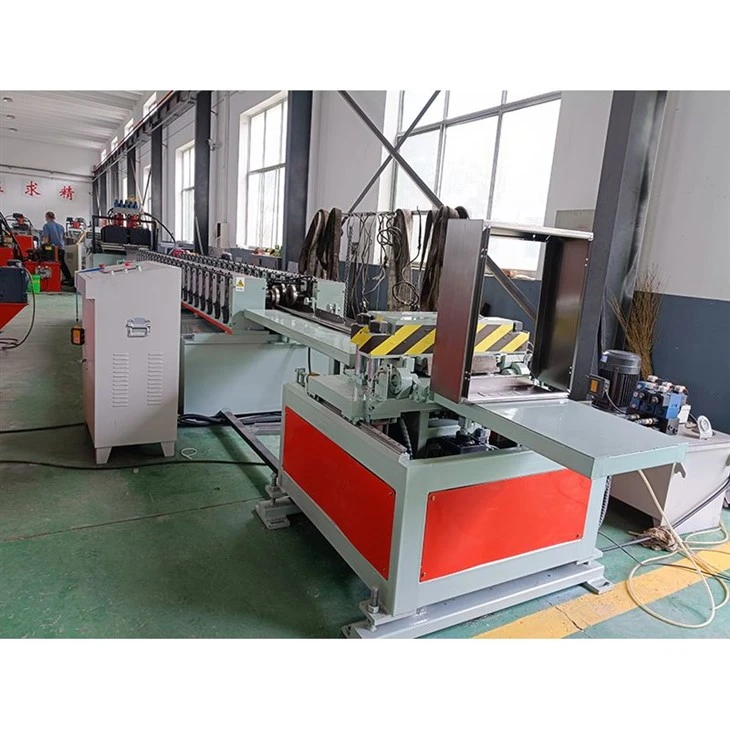

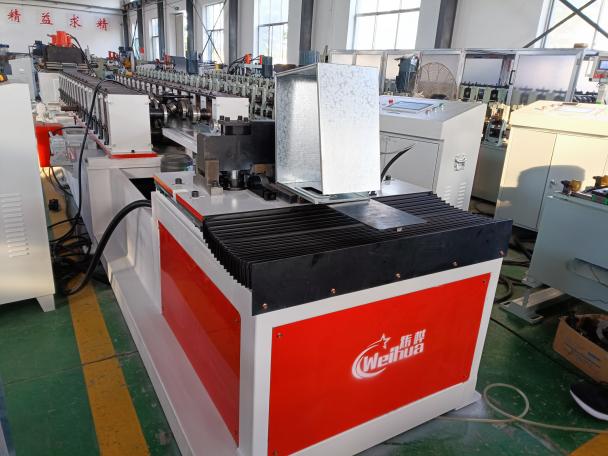

Hluav taws xob Distribution Box Manufacturing Machine |
|
|
Khoom Specifications |
Q235 txias- dov sawb steel, galvanized sawb hlau |
|
|
Khoom Thickness |
0.6 → 1.2mm (customizable) |
|
|
Ntau lawm ceev |
2 pcs / min |
|
|
Khoom Specifications |
Lub thawv loj: 250 * 300-800 * 1000 (Customizable) |
|
|
Lub thawv qhov tob |
Customizable |
|
|
Voltage Parameters |
380V / 415V, 50Hz, 3 theem |
|
|
Cua Source |
0.5 m³ / min; Siab: 0.7MPa |
|
|
Roll Khoom |
Cr12 CNC tshuab; quenched rau HRC58℃-60℃hardness |
|
|
Tsav Tsav |
Variable zaus tsav tsav |
|
|
Tag nrho lub cev muaj zog |
25 kwv |
|
|
Txiav Tuag Khoom |
Cr12MOV |
|
|
Hom kis tau tus mob |
Gearbox |
|
|
Txoj kev txiav |
Hydraulic txiav |
|
|
Txiav Dimension Tolerance |
Tsawg dua los yog sib npaug rau ± 0.5mm (Length Tsawg dua lossis sib npaug rau 1000mm) |
|
|
Kev Ua Haujlwm |
Touchscreen HMI |
|
|
Hluav taws xob tswj |
Mitsubishi PLC tswj qhov kev pab cuam |
|
|
Fotoage Space |
20 * 2 * 3m (Length × Dav × Qhov siab) |
|
Khoom zoo
- Ib -tus neeg ua haujlwm, ua haujlwm siab - ua haujlwm tau zoo:Cov cuab yeej ua haujlwm ntawm qhov ceev ntawm 2 lub thawv ib feeb, ua 1000-1200 units ib hnub. Tsuas yog ib tus neeg xav tau los ua haujlwm rau tag nrho cov txheej txheem tsim, txo qis kev cia siab ntawm kev siv tes ua haujlwm thaum tswj kev ruaj khov thiab muaj peev xwm ntau lawm.
- Rigid qauv, ruaj precision:Lub tsev tseem ceeb nta ib qho hnyav - lub luag haujlwm thav duab tsim thiab yog nruab nrog precision- cov menyuam hauv av. Cov qauv nruj no muaj txiaj ntsig zoo tiv thaiv kev vibration thiab deformation thaum lub sijhawm ua haujlwm siab - nrawm, ua kom lub thawv ruaj khov ntawm qhov raug thiab cov khoom zoo -rau-batch sib xws thaum lub sij hawm tsim khoom loj.

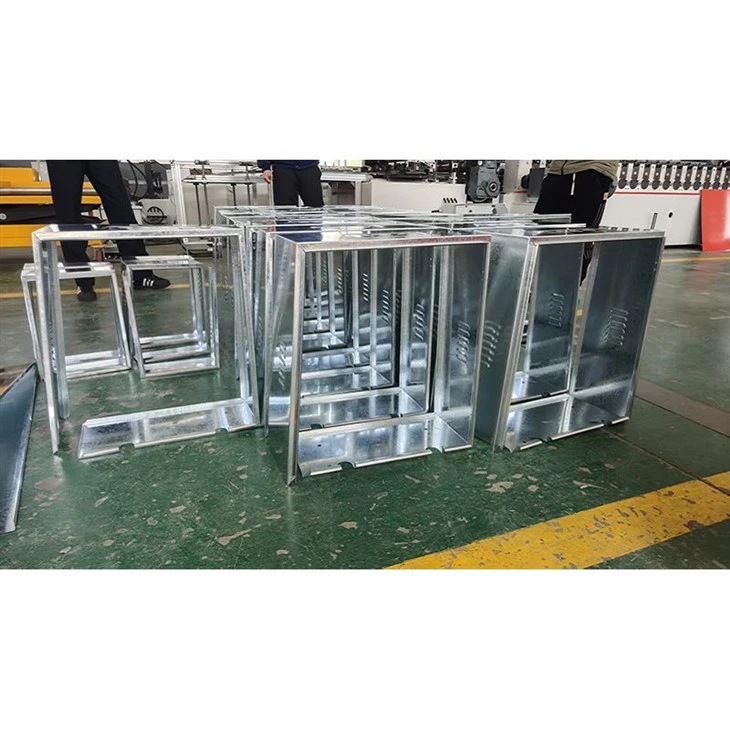

- Multi-lub hom phiaj, hloov pauv hloov tau yooj yim:Cov cuab yeej txhawb kev ywj pheej hloov lub thawv qhov ntau thiab tsawg, thiab cov xuas nrig ntaus tuag tuaj yeem hloov pauv sai sai kom ua tiav qhov sib txawv ntawm qhov sib txawv. Ib chav tsev tseem ceeb tuaj yeem siv los tsim ntau hom thawv, suav nrog lub hauv paus lub thawv, lub thawv fais fab, lub thawv qhov chaw tsim kho, PZ30 Circuit Court lub thawv, them pawg tiv thaiv lub thawv, thiab lub thawv photovoltaic combiner, ua rau nws tsim nyog rau cov tuam txhab tsim khoom lag luam ua ntau yam kev txiav txim.
- Tsis yog - tus qauv customization, hloov tau cov lus teb:Tsis yog- cov qauv tshwj xeeb tuaj yeem ua raws li cov neeg siv khoom xav tau, suav nrog cov thawv tshwj xeeb, qhov tsis sib xws, thiab cov ntawv tuab sib txawv, ua tau raws li tus kheej xav tau.

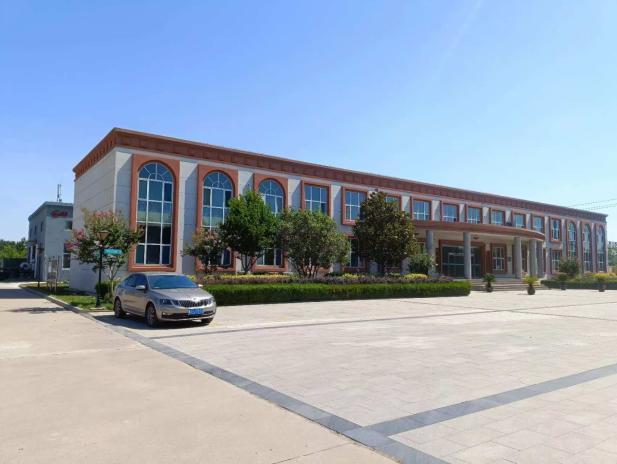

Factory duab

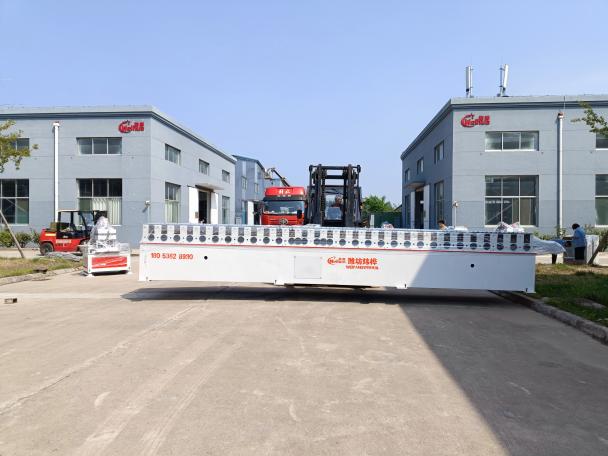

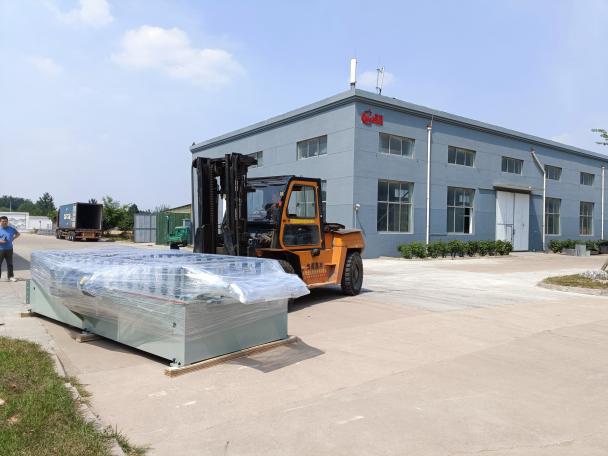

Shipping duab

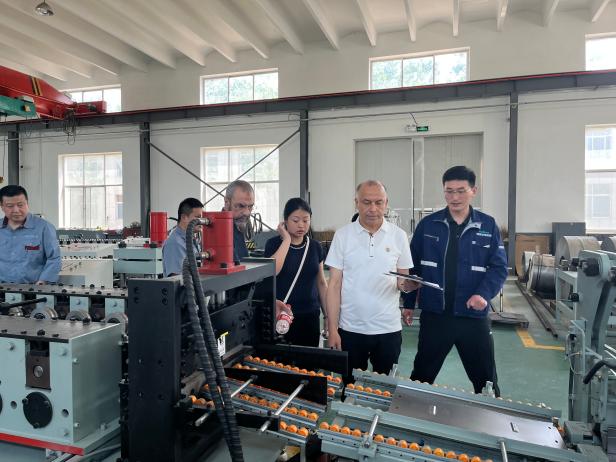

Cov neeg tuaj xyuas
FAQ
Q. Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas nyob hauv Weifang, Suav. Nws muaj ntau tshaj nees nkaum pawg ntawm cov cuab yeej siv siab heev, suav nrog lub chaw tshiab precision machining, NC lathes, CNC xaim EDM cov cav tov, thiab lub tsheb loj profile dabtsi yog khoov kuaj platform. Koj tuaj yeem tuaj xyuas peb lub Hoobkas txhua lub sijhawm.
Q: Koj lub sijhawm xa khoom ntev npaum li cas?
A: Rau lub thawv ntim puv, lub sijhawm ua haujlwm Hoobkas Txog 35 ~ 40 hnub.
Q: Koj cov nqe lus them nqi thiab nqe lus ua lag luam yog dab tsi?
A: Txais Cov Lus Cog Tseg: FOB, CFR, CIF, CIP, FCA, CPT, Kev Xa Tawm, DAF.
Q: Muaj pes tsawg lub thawv xa khoom no tuaj yeem tsim tau ib hnub?
A: Nyob rau hauv kev ua haujlwm ruaj khov, lub peev xwm tsim tau txhua hnub yog 1000-1200 lub thawv, sib xws rau qhov nrawm ntawm kwv yees li 2 lub thawv ib feeb. Cov zis txhua hnub yuav raug cuam tshuam los ntawm lub sijhawm pabcuam xws li kev hloov pauv ntawm cov khoom siv raw thiab hloov pwm, tab sis qhov kev ua tau zoo tag nrho yog siab dua li cov txheej txheem segmented.
Q: Dab tsi ntawm cov thawv xa khoom tuaj yeem tsim cov kab ntau lawm?
A: Nws tuaj yeem pwm ntau hom thawv rau hauv ib daim, suav nrog: lub hauv paus thawv, lub thawv fais fab, lub thawv tsim kho, PZ30 Circuit Court lub thawv, them pawg tiv thaiv lub thawv, photovoltaic combiner thawv, thiab lwm yam., npog pej xeem, kev lag luam, thiab kev lag luam.
