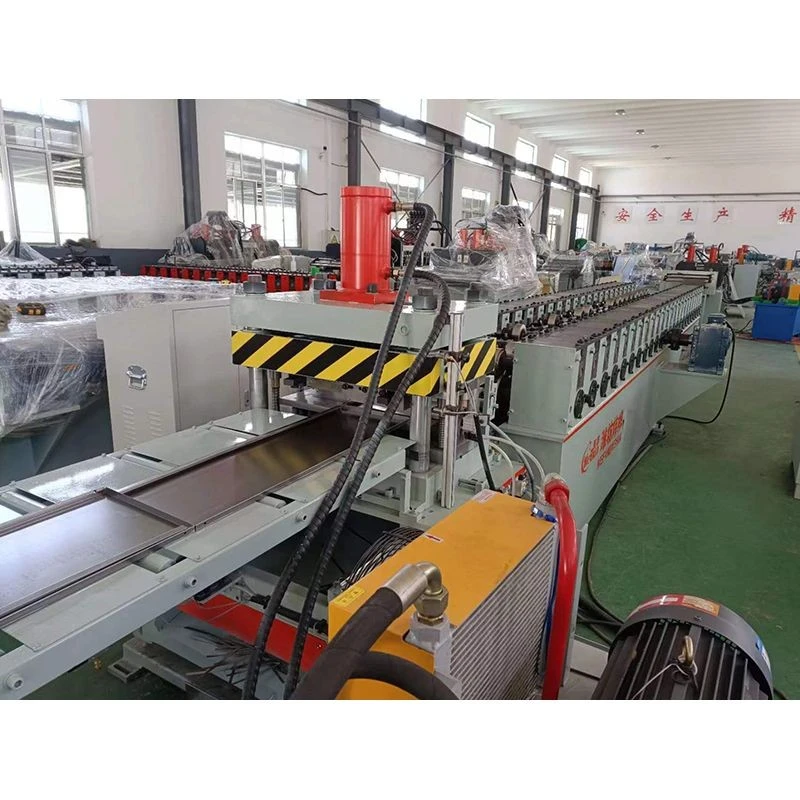

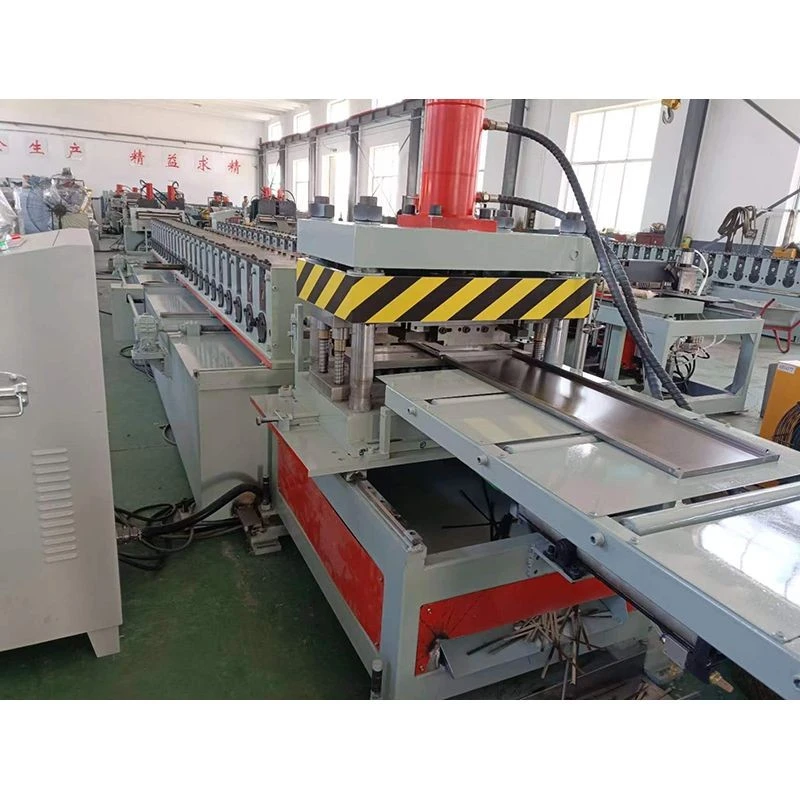

Supermarket Txee Back Vaj Huam Sib Luag Roll Forming Tshuab
Lub Tsev Muag Khoom Phaj Rov Qab Yob Txoj Tshuab yog ib qho khoom siv tshwj xeeb rau kev yob txuas ntxiv - ua steel strips rau hauv lub khw muag khoom txee rov qab vaj huam sib luag profiles. Lub txee rov qab vaj huam sib luag hla- ntu yuav tsum tau ua kom muaj zog ntxiv los ntawm cov npoo folded thiab ntxiv cov tav, thiab yuav tsum tau ua ntej -drilled nrog nuv qhov los yog mounting qhov rau kev txuas mus rau uprights. Cov khoom siv no siv GCr15 bearing steel rollers (quenched mus rau ib tug hardness ntawm HRC58℃-62 degree), nta ib tug split-hloov hloov kis hom, thiab integrates uncoiling, leveling, servo noj, xuas nrig ntaus, txias dabtsi yog khoov, thiab hydraulic txiav rau hauv ib chav tsev.
Technical Specifications
|
Khoom npe |
Supermarket Txee Back Vaj Huam Sib Luag Roll Forming Tshuab |
|
Hom kis tau tus mob |
Split- qhib kev hloov kho |
|
Khoom Specification |
Q235 |
|
Ntau lawm ceev |
5-15m / min |
|
Cov cuab yeej txiav |
Hydraulic txiav |
|
Qhov hluav taws xob |
Customizable |
|
Voltage Parameters |
380V / 415V, 50Hz, 3 theem |
|
Tswj Cheebtsam |
Mitsubishi PLC maub los (Nyiv) |
|
Processable Khoom Thickness |
0.28-0.8mm (Customized raws li tus neeg yuav tsum tau muaj) |
|
Processable Material Dav |
Tsawg dua lossis sib npaug li 700mm (Customized raws li cov neeg siv khoom xav tau) |
|
Roll Khoom |
GCr15, Hardness HRC58℃-62 degree |
|
Tag nrho lub cev muaj zog |
23 kWm |
|
Hydraulic System Fais Fab |
5 KW |
|
Uncoiler Load Capacity |
Tsawg dua lossis sib npaug li 5 tons |
|
Txiav Dimension Tolerance |
Tsawg dua lossis sib npaug rau ± 0.5mm (Length Tsawg dua lossis sib npaug rau 3000mm) |
|
Txiav Tuag Khoom |
Cr12MOV |
Khoom zoo
Longitudinal Reinforceing Ribs thiab Back Vaj Huam Sib Luag Flatness tsim nyob rau hauv ib kauj ruam
Qhov loj cheeb tsam thiab nyias thickness ntawm shelving rov qab vaj huam sib luag ua rau nws yooj yim rau flat distortion thiab bulging. Cov cuab yeej siv ntau lub xovxwm rau hauv cov txheej txheem tsim kom muaj kev sib koom ua ke ntawm ntau lub longitudinal reinforcing tav nyob rau sab nraub qaum. Qhov tob, qhov dav, thiab qhov sib txawv ntawm cov hlua txuas ntxiv yog xam raws li qhov dav ntawm lub vaj huam sib luag sab nraub qaum thiab cov tuab, ua kom cov vaj huam sib luag rov qab khoov rigidity thiab flatness, tshem tawm qhov xav tau ntawm cov vuam txuas ntxiv ntawm cov khoom siv ntxiv.
Multi-Txheej Folded Edges rau txhim kho Zuag qhia tag nrho Rigidity
Plaub sab ntawm lub vaj huam sib luag rov qab yog folded thiab dov los ua ib tug ntau- txheej txheej, txhim kho ntug rigidity thiab ua rau kev sib txuas ntawm lub vaj huam sib luag rov qab thiab cov uprights ruaj ntseg dua tom qab sib dhos. Cov khoom siv tuaj yeem tsim ntau- txheej txheej folded npoo (xws li ob npaug - txheej folding, dov npoo, thiab lwm yam) hauv ib kauj ruam raws li tus neeg siv khoom lub vaj huam sib luag rov qab - ntu yuav tsum tau ua. Cov npoo tsim yog du thiab burr-dawb, tiv thaiv cov ntiv tes txiav thaum lub sijhawm teeb tsa thiab siv, thiab tseem txhim kho tag nrho cov deformation tsis kam ntawm lub vaj huam sib luag tom qab.
Ua ntej- punching ntawm Upright Connection qhov nyob rau hauv ib kauj ruam, tshem tawm qhov xav tau rau Secondary Drilling thaum lub sij hawm installation
Lub vaj huam sib luag rov qab thiab uprights yog txuas nrog thiab tsau siv bolts lossis dai daim hlau. Hauv seem stamping, cov cuab yeej tuaj yeem ua ib txhij ua ntej - punch qhov sib txuas ntawm ob sab ntawm lub vaj huam sib luag tom qab raws li kab sib nrug thiab txoj kev sib txuas los ntawm tus neeg siv khoom. Lub qhov sib nrug precisely sib haum mus rau kem mounting qhov. Thaum lub sij hawm tsim cov kab ntau lawm, lub vaj huam sib luag rov qab tuaj yeem ncaj qha bolted lossis dai yam tsis tas yuav tsum tau rau ntawm - qhov chaw drilling, zoo heev txhim kho kev ua haujlwm ntawm khib sib dhos.

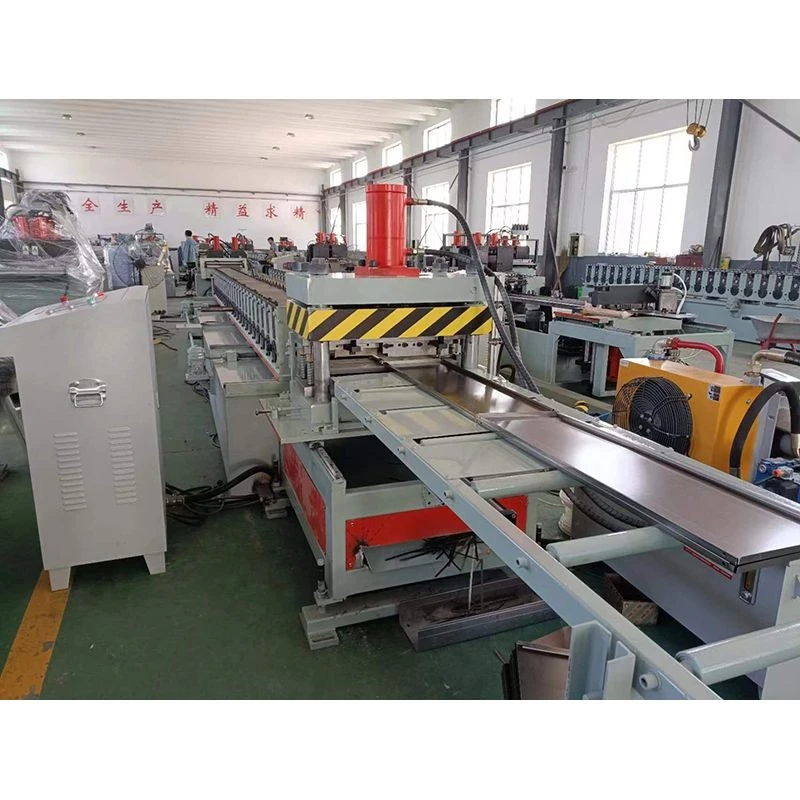

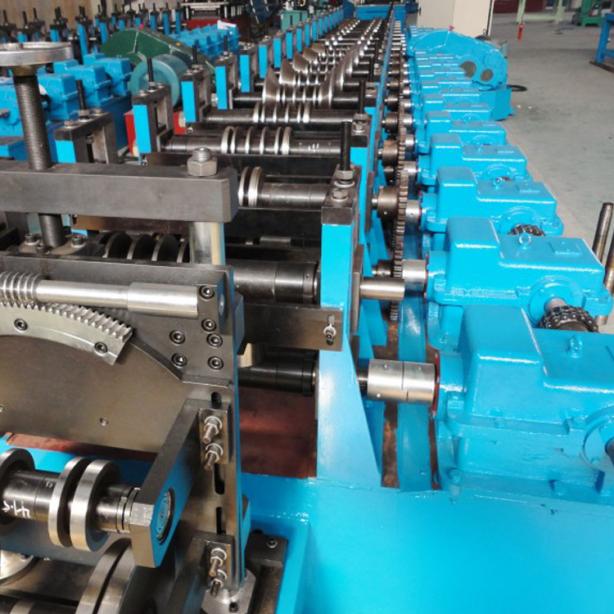

Factory duab

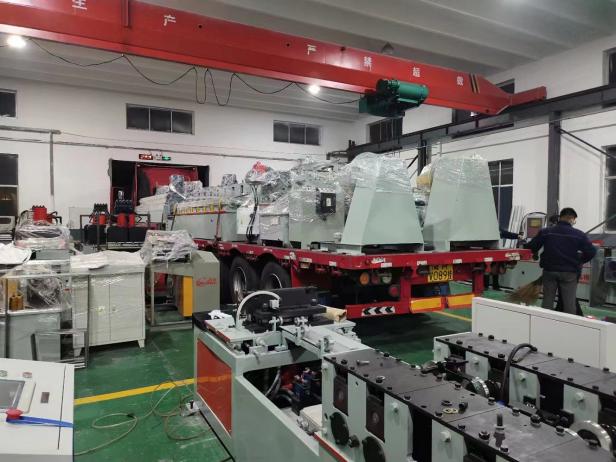

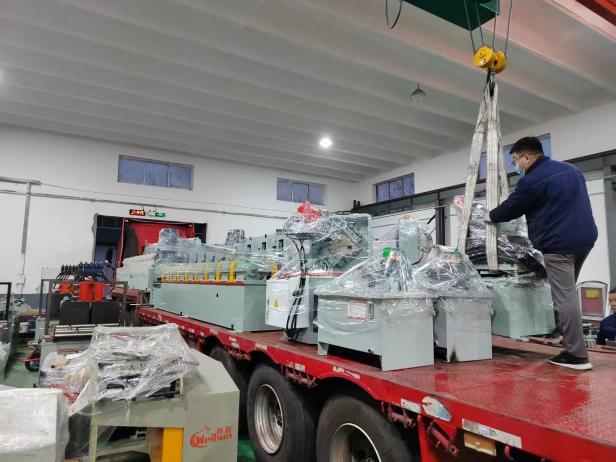

Shipping duab
Cov neeg tuaj xyuas
FAQ
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas nyob hauv Weifang, Suav. Nws muaj ntau tshaj nees nkaum pawg ntawm cov cuab yeej siv siab heev, suav nrog lub chaw tshiab precision machining, NC lathes, CNC xaim EDM cov cav tov, thiab lub tsheb loj profile dabtsi yog khoov kuaj platform. Koj tuaj yeem tuaj xyuas peb lub Hoobkas txhua lub sijhawm.
Q: Puas yuav rov qab vaj huam sib luag deform tom qab xuas nrig ntaus?
A: Cov cuab yeej siv servo- tswj kev xuas nrig ntaus. Lub zog tuav lub zog yog tswj tau meej thaum lub sij hawm xuas nrig ntaus, thiab kev txhawb nqa synchronous thaum lub sij hawm cov ntaub ntawv txav mus tiv thaiv cov dents hauv zos los yog kev sib tw los ntawm kev xuas nrig ntaus. Punching txoj hauj lwm yog tag nrho nyob rau hauv qhov ncaj ncaj nruab nrab ntawm kev txhawb nqa tav, tsis cuam tshuam rau tag nrho flatness ntawm lub vaj huam sib luag tom qab. Cov npoo tom qab xuas nrig ntaus yog du thiab burr -dawb, tso cai nkag ncaj qha rau hauv cov txheej txheem tha xim.
Q: Dab tsi yog qhov dav tshaj plaws ntawm lub vaj huam sib luag tom qab uas tuaj yeem ua tiav?
A: Cov khoom siv tus qauv siab tshaj plaws ua qhov dav yog Tsawg dua lossis sib npaug li 700mm. Cov dav dav rau lub khw muag khoom txee rov qab yog 300-600mm, tag nrho npog cov qauv xav tau. Yog tias cov neeg siv khoom xav tau rov qab panels dav dua 700mm, lub tshuab dav dav tuaj yeem kho tau. Cov kev dav dav tshwj xeeb yuav tsum tau muab rau cov neeg ua haujlwm kws tshaj lij los ntsuas thiab kho cov khoom siv tshwj xeeb.
