Rittal- Style Hluav Taws Xob Hluav Taws Xob Cov Kab Ntau Lawm

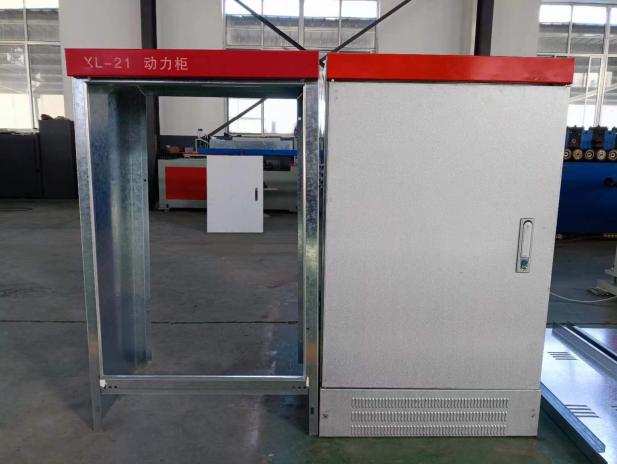

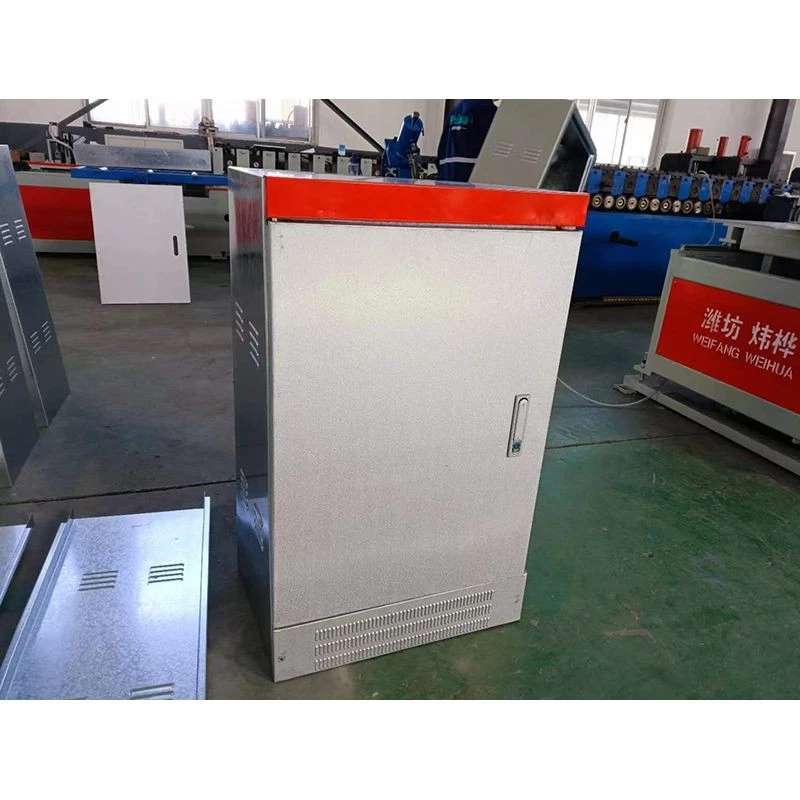

Lub Rittal- Style Hluav Taws Xob Hluav Taws Xob Cov Kab Ntau Lawm yog cov kab ntau lawm uas siv tau rau cov khoom siv hlau loj rau ntau yam khoom siv hluav taws xob, npog ntau qhov ntau thiab tsawg los ntawm cov thawv me me mus rau cov khoom hluav taws xob loj. Cov kab sib txuas ua ke uncoiling, leveling, servo noj, nruam xuas nrig ntaus, siab -precision yob txoj kev, ntev txiav, thiab tsis siv neeg dabtsi yog khoov. Cov cuab yeej siv Cr12 CNC machined rollers, gearbox tsav, Mitsubishi PLC tswj qhov system, thiab touchscreen tib neeg- tshuab interface. Nws tsuas yog xav tau ib tus neeg teb xov tooj xwb, nrog kev tsim khoom ceev ntawm 1-2 qhov thaiv ib feeb, tso tawm 800-1200 enclosures ib hnub. Qhov ntau thiab tsawg ntawm 300 × 400 txog 1800 × 2000 (customizable), thiab tsis yog tus qauv customization yog txaus siab.
Technical Specifications
|
Khoom npe |
Rittal- Style Hluav Taws Xob Hluav Taws Xob Cov Kab Ntau Lawm |
|
|
Khoom Specifications |
Q235 txias- dov sawb steel, galvanized sawb hlau |
|
|
Khoom Thickness |
1.2 → 1.5mm (customizable) |
|
|
Ntau lawm ceev |
1-2 pcs / min |
|
|
Khoom Specifications |
Lub thawv loj: 300 * 400-1800 * 2000 (Customizable) |
|
|
Lub thawv qhov tob |
Customizable |
|
|
Voltage Parameters |
380V / 415V, 50Hz, 3 theem |
|
|
Cua Source |
0.5 m³ / min; Siab: 0.7MPa |
|
|
Roll Khoom |
Cr12 CNC tshuab; quenched mus rau ib tug hardness ntawm HRC58℃-60 degree |
|
|
Tsav Tsav |
Variable zaus tsav tsav |
|
|
Tag nrho lub cev muaj zog |
25 kwv |
|
|
Txiav Tuag Khoom |
Cr12MOV |
|
|
Hom kis tau tus mob |
Gearbox |
|
|
Txoj kev txiav |
Hydraulic txiav |
|
|
Txiav Dimension Tolerance |
Tsawg dua los yog sib npaug rau ± 0.5mm (Length Tsawg dua lossis sib npaug rau 1000mm) |
|
|
Kev Ua Haujlwm |
Kov npo tib neeg - tshuab interface |
|
|
Hluav taws xob tswj |
Mitsubishi PLC tswj qhov kev pab cuam |
|
|
Fotoage Space |
28 * 2 * 3m (ntev × dav × qhov siab) |
|
Khoom zoo
- Ib lub tshuab, ntau tus qauv, hloov tau yooj yim. Cov kab ntau lawm tuaj yeem tsim cov vaj tsev sib txawv ntawm ib lub tshuab los ntawm kev hloov cov menyuam yaus sai sai thiab kho cov kev hloov kho. Txawm hais tias nws yog lub thawv me me lossis lub txee loj tswj, kev hloov pauv tshwj xeeb tuaj yeem ua tiav kom haum rau cov qauv kev lag luam ntawm ntau yam thiab cov khoom me me.
- Tag nrho cov txheej txheem yog automated, yuav tsum tsuas yog ib tus neeg los khiav txoj kab. Los ntawm uncoiling, leveling, pub, stamping, sib sau rau dabtsi yog khoov thiab txiav, tag nrho cov kab ua tiav kev sib koom ua ke ntawm mechatronic, nrog kev sib tw tsis siv neeg ceev ntawm txhua qhov chaw nres tsheb, tshem tawm qhov xav tau ntawm phau ntawv cuam tshuam hauv cov kauj ruam nruab nrab. Tag nrho cov kab yuav tsum tsuas yog ib tus neeg ua haujlwm, txo cov nqi zog thiab daws cov teeb meem ntawm kev nyuaj rau kev nrhiav neeg ua haujlwm thiab cov nqi zog siab.
- Nrog lub peev xwm tsim khoom txhua hnub ntawm 800-1200 units, cov kab ntau lawm no boasts kev ua tau zoo. Cov cuab yeej tsim tawm 1-2 lub plhaub ib feeb, tswj kev ruaj khov txhua hnub ntawm 800-1200 units. Qhov no yog kaum lossis ntau pua lub sij hawm sai dua li cov txheej txheem shearing thiab vuam (qhov twg ib tus neeg ua haujlwm tsuas tuaj yeem tsim ob peb lub thawv loj lossis cov thawv me me hauv ib hnub). Raws li kev tsim txhua xyoo ntawm 200,000 lub plhaub, cov txheej txheem ib txwm xav tau 30-50 tus neeg ua haujlwm, thaum cov kab tsim khoom no tsuas yog xav tau ib tus neeg xwb, txo cov nqi zog ua haujlwm.

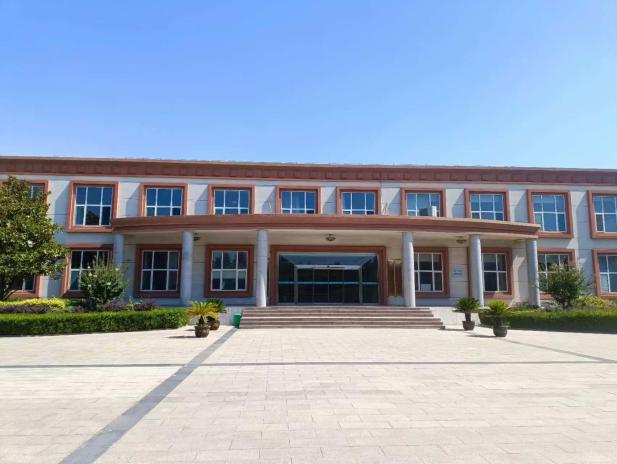

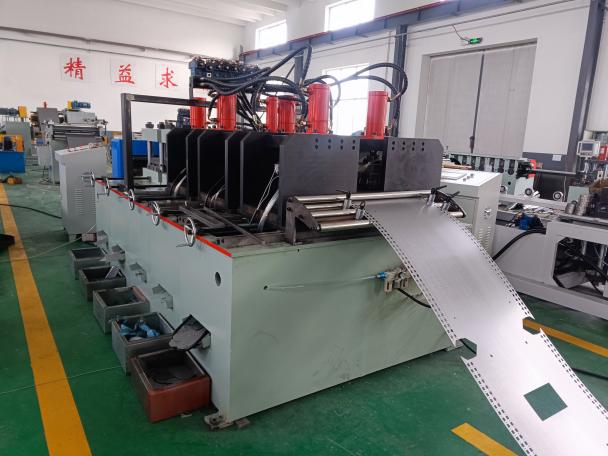

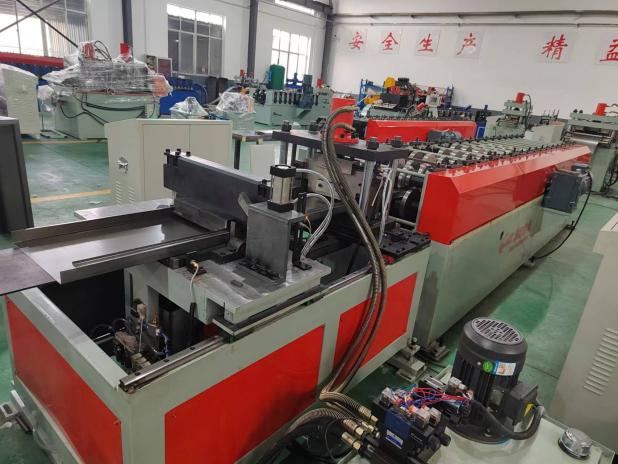

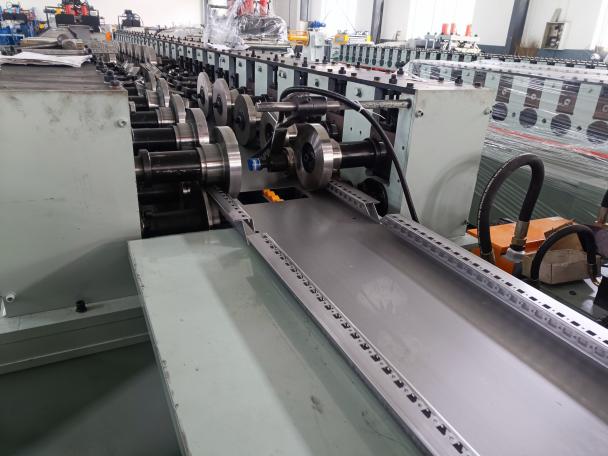

Factory duab

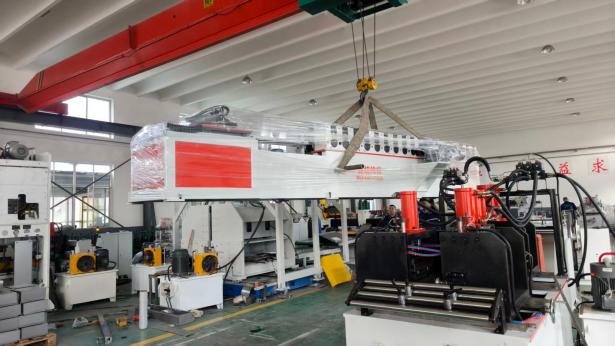

Shipping duab
Cov neeg tuaj xyuas
FAQ
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas nyob hauv Weifang, Suav. Nws muaj ntau tshaj nees nkaum pawg ntawm cov cuab yeej siv siab heev, suav nrog lub chaw tshiab precision machining, NC lathes, CNC xaim EDM cov cav tov, thiab lub tsheb loj profile dabtsi yog khoov kuaj platform. Koj tuaj yeem tuaj xyuas peb lub Hoobkas txhua lub sijhawm.
Q: Yuav ua li cas thiaj li muaj peev xwm ntawm 800-1200 units txhua hnub? Kev tsim khoom tiag tiag tuaj yeem ncav cuag qib no?
A: Lub peev xwm ntau lawm yog xam raws li cov cuab yeej ua haujlwm ceev ntawm 1-2 units / feeb, thiab lub sijhawm ua haujlwm zoo ntawm 8 teev ib hnub. Kev tsim khoom txhua hnub tiag tiag yuav tsum tau txiav tawm lub sijhawm pabcuam xws li hloov pauv, hloov tuag, thiab tshuaj xyuas cov khoom siv. Yog tias ua haujlwm tsis tu ncua hauv peb qhov kev hloov pauv rau 24 teev, lub peev xwm tsim khoom txhua hnub tuaj yeem nce ntxiv.
Q: Cov cuab yeej siv 28 × 2 × 3 meters. Nws puas tuaj yeem npaj nws hauv ib qho kev teeb tsa nrog qhov chaw tsim khoom tsawg?
A: Tus qauv layout yog txoj kab ncaj nraim, 28 meters ntev × 2 meters dav. Kev nkag mus rau kev ua haujlwm thiab kev saib xyuas qhov chaw yuav tsum tau tshwj tseg thaum lub sijhawm teeb tsa tiag tiag. Yog tias lub Hoobkas ntev tsis txaus, koj tuaj yeem muab cov phiaj xwm hauv pem teb, thiab peb cov neeg ua haujlwm pabcuam tuaj yeem muab cov phiaj xwm tsim kho.
