Cov Khoom Siv Hluav Taws Xob Hluav Taws Xob

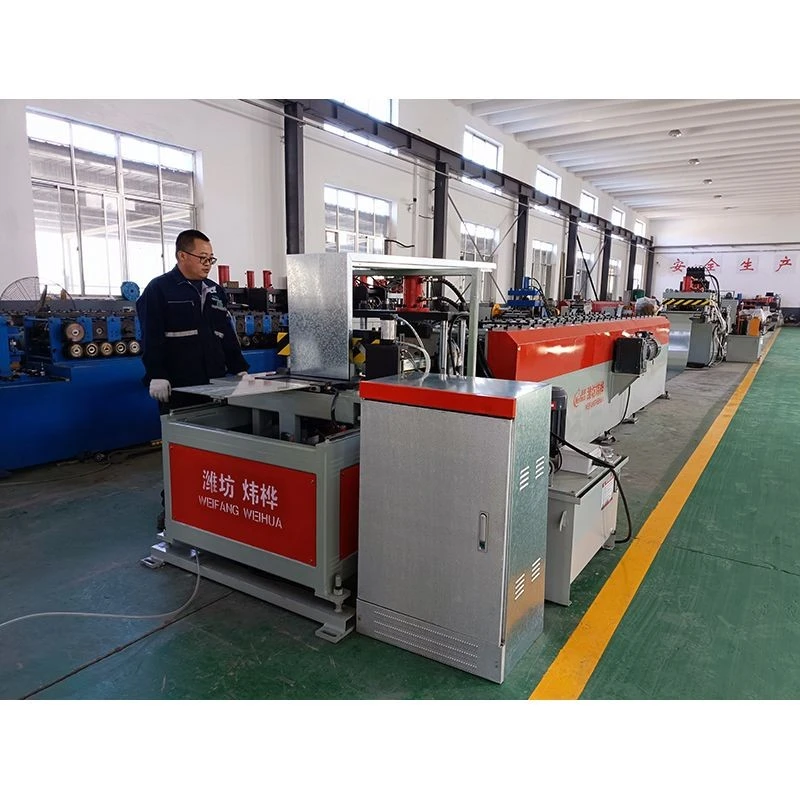

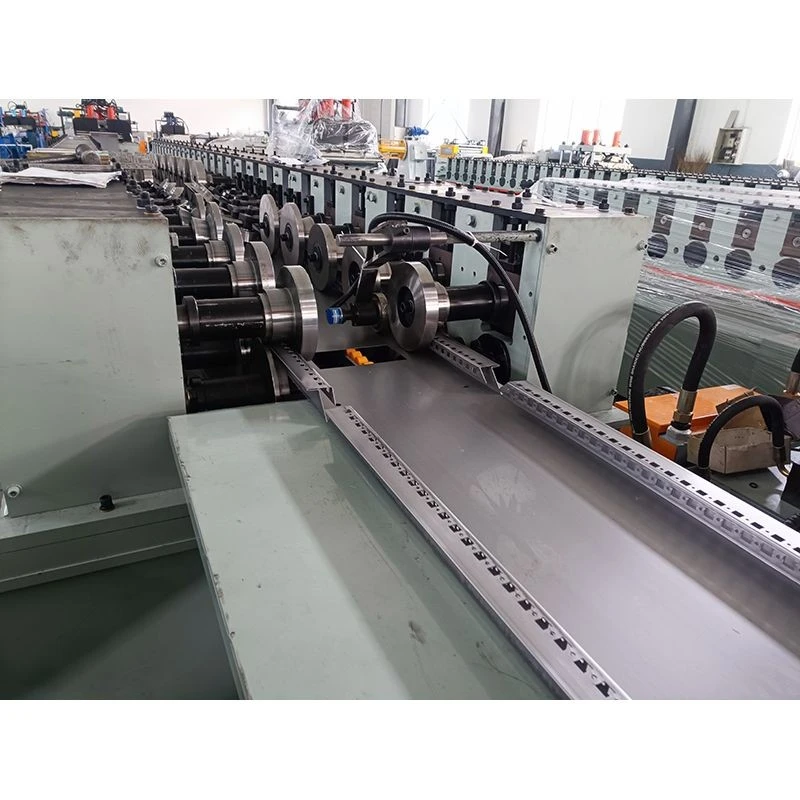

Cov Khoom Siv Hluav Taws Xob Cov Khoom Siv Hluav Taws Xob yog lub hauv paus tsim tshuab ntawm cov khoom siv hluav taws xob tag nrho cov khoom siv hluav taws xob. Integrating nruam xuas nrig ntaus, siab -precision yob txoj kev, ntev txiav, thiab tsis siv neeg dabtsi yog khoov, nws yog lub hauv paus tseem ceeb ntawm tag nrho cov ntau lawm kab. Nruab nrog Mitsubishi PLC tswj qhov system thiab tus kov npo tib neeg- tshuab interface, nws ua kom muaj kev tswj hwm tus kheej thiab tus kheej- kuaj xyuas qhov ua txhaum. Raws li lub hauv paus ntawm cov kab ntau lawm, cov khoom siv no tsuas yog xav tau ib tus neeg ua haujlwm xwb, ua tiav kev tsim khoom ceev ntawm 1-2 txee rau ib feeb, muaj peev xwm txhua hnub ntawm 800-1200 units. Nws tuaj yeem ua cov txee loj li ntawm 300 × 400 txog 1800 × 2000 (customizable), thiab tsim nyog rau kev tsim khoom loj ntawm ntau lub txee hluav taws xob, suav nrog cov khoom siv hluav taws xob siab thiab tsis tshua muaj hluav taws xob, 21 lub hwj chim txee, thiab Rittal-style txee.
Technical Specifications
|
Khoom npe |
Cov Khoom Siv Hluav Taws Xob Hluav Taws Xob |
|
|
Khoom Specifications |
Q235 txias- dov sawb steel, galvanized sawb hlau |
|
|
Khoom Thickness |
1.2 → 1.5mm (customizable) |
|
|
Ntau lawm ceev |
1-2 pcs / min |
|
|
Khoom Specifications |
Lub thawv loj: 300 * 400-1800 * 2000 (Customizable) |
|
|
Lub thawv qhov tob |
Customizable |
|
|
Voltage Parameters |
380V / 415V, 50Hz, 3 theem |
|
|
Cua Source |
0.5 m³ / min; Siab: 0.7MPa |
|
|
Roll Khoom |
Cr12 CNC tshuab; quenched mus rau ib tug hardness ntawm HRC58℃-60 degree |
|
|
Tsav Tsav |
Variable zaus tsav tsav |
|
|
Tag nrho lub cev muaj zog |
25 kwv |
|
|
Txiav Tuag Khoom |
Cr12MOV |
|
|
Hom kis tau tus mob |
Gearbox |
|
|
Txoj kev txiav |
Hydraulic txiav |
|
|
Txiav Dimension Tolerance |
Tsawg dua los yog sib npaug rau ± 0.5mm (Length Tsawg dua lossis sib npaug rau 1000mm) |
|
|
Kev Ua Haujlwm |
Kov npo tib neeg - tshuab interface |
|
|
Hluav taws xob tswj |
Mitsubishi PLC tswj qhov kev pab cuam |
|
|
Fotoage Space |
28 * 2 * 3m (ntev × dav × qhov siab) |
|
Khoom zoo
- Heavy- lub luag haujlwm tseem ceeb, tshwj xeeb tsim rau cov txee loj. Cov cuab yeej muaj cov qauv siv zog ntxiv nrog kev nruj nruj, tshwj xeeb yog tsim los rau qhov loj thiab tuab daim hlau ntawm cov khoom siv hluav taws xob. Muab piv rau cov khoom siv sib xyaw ua ke zoo tib yam, chav tsev tseem ceeb no muaj cov kab uas hla ntawm cov menyuam loj dua thiab cov kab uas hla, thiab cov phab ntsa tuab dua, kom ntseeg tau tias cov khoom siv tsis muaj elastic deformation thaum ua cov phaj dav thiab tuab, lav lub txee tsim kom raug.
- Cr12 rollers, hnav-tiv taus thiab ntev- kav ntev. Cov txheej txheem yog CNC machined los ntawm Cr12 pwm steel, thiab tom qab quenching kev kho mob, lub hardness mus txog HRC58℃-60%, uas ua rau lub siab nto tiav thiab zoo heev hnav tsis kam. Thaum lub sij hawm ntev mus tas li ntau lawm, cov menyuam nto tsis tshua muaj kev hnav pits lossis khawb, ua kom cov cuab yeej siv tau zoo thiab txo cov nqi tu.
- Gearbox tsav, ruaj khov thiab txhim khu kev qha. Lub ntsiab chav tsev siv lub gearbox tsav hom, nrog rau tag nrho cov rollers synchronously tsav los ntawm iav teeb, kom ntseeg tau meej sib kis. Muab piv rau cov saw hlau los yog siv cov tsav tsheb, gearboxes muaj qhov hnyav dua - cov kabmob muaj peev xwm, tshem tawm txoj hlua khi thiab cov hniav hla, ua rau lawv tshwj xeeb tshaj yog haum rau yob txoj kev ntawm cov phaj tuab nrog cov ntoo khaub lig loj - ntu, kom ntseeg tau qhov sib luag thiab qhov ntev ntawm lub txee.
- Hydraulic txiav ua ib tug du nto. Siv txoj kev txiav hydraulic nrog Cr12MoV tuag, nws muaj kev txiav txim siab thiab ceev. Txiav qhov ntev ntev yog tswj nyob rau hauv ± 0.5mm (ntev Tsawg dua los yog sib npaug rau 1000mm), ua rau ib tug du, burr - dawb txiav nto uas yuav tsum tsis muaj kev sib tsoo tom ntej.

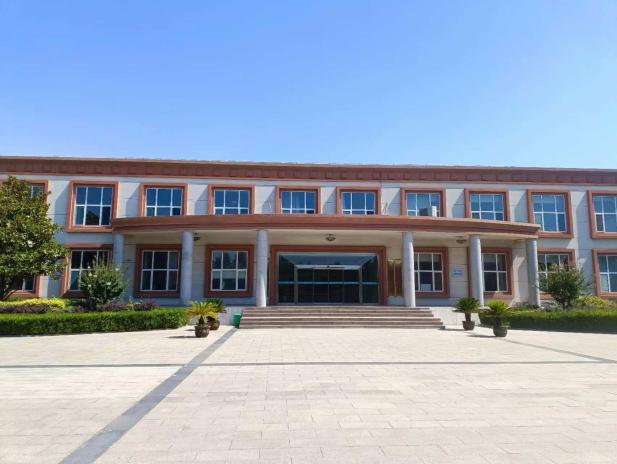

Factory duab

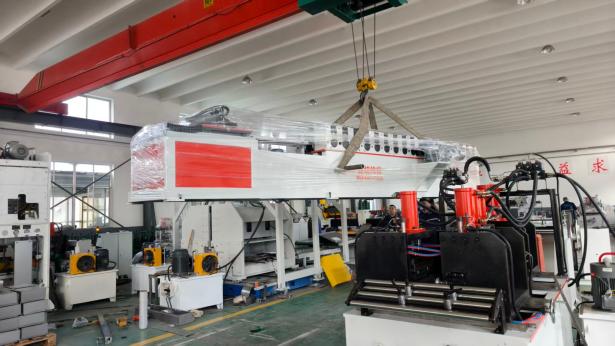

Shipping duab
Cov neeg tuaj xyuas
FAQ
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas nyob hauv Weifang, Suav. Nws muaj ntau tshaj nees nkaum pawg ntawm cov cuab yeej siv siab heev, suav nrog lub chaw tshiab precision machining, NC lathes, CNC xaim EDM cov cav tov, thiab lub tsheb loj profile dabtsi yog khoov kuaj platform. Koj tuaj yeem tuaj xyuas peb lub Hoobkas txhua lub sijhawm.
Q: Dab tsi thickness ntawm cov ntawv hlau tuaj yeem ua cov txheej txheem?
A: Tus qauv kev teeb tsa txhawb nqa 1.2-1.5mm tuab txias-dov los yog galvanized steel sawb. Rau kev ua cov ntawv tuab (piv txwv li, 2.0mm lossis ntau dua), kev kho kom haum tuaj yeem muab tau raws li cov neeg siv khoom xav tau, suav nrog kev nce cov menyuam txoj kab uas hla, txhim kho cov ncej rigidity, thiab nce hydraulic system siab.
Q: Puas yog cov khoom siv ua haujlwm nyuaj? Muaj pes tsawg tus neeg xav tau los ua haujlwm nws?
A: Cov cuab yeej tau nruab nrog Mitsubishi PLC tswj qhov system thiab touchscreen tib neeg - tshuab interface. Tag nrho cov tsis muaj (xws li qhov ntev, ceev, xuas nrig ntaus txoj haujlwm, thiab lwm yam) tuaj yeem teeb tsa thiab nkag mus rau ntawm lub vijtsam, ua rau kev ua haujlwm zoo. Tsuas yog ib tus neeg yuav tsum tau ua haujlwm tag nrho lub tshuab, lub luag haujlwm pub mis, saib xyuas kev ua haujlwm, thiab khaws cov ntaub ntawv.
