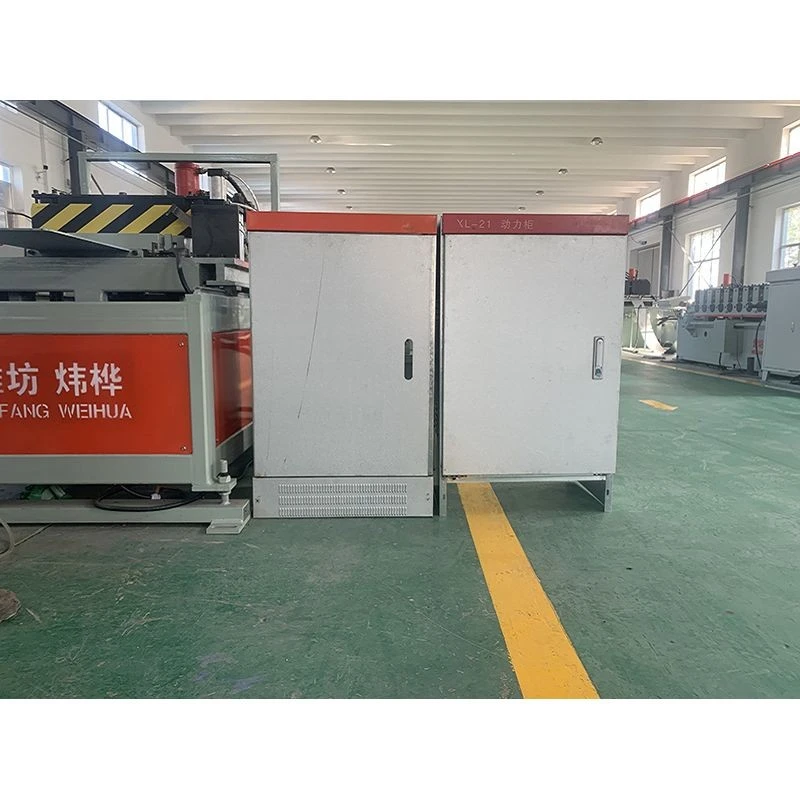

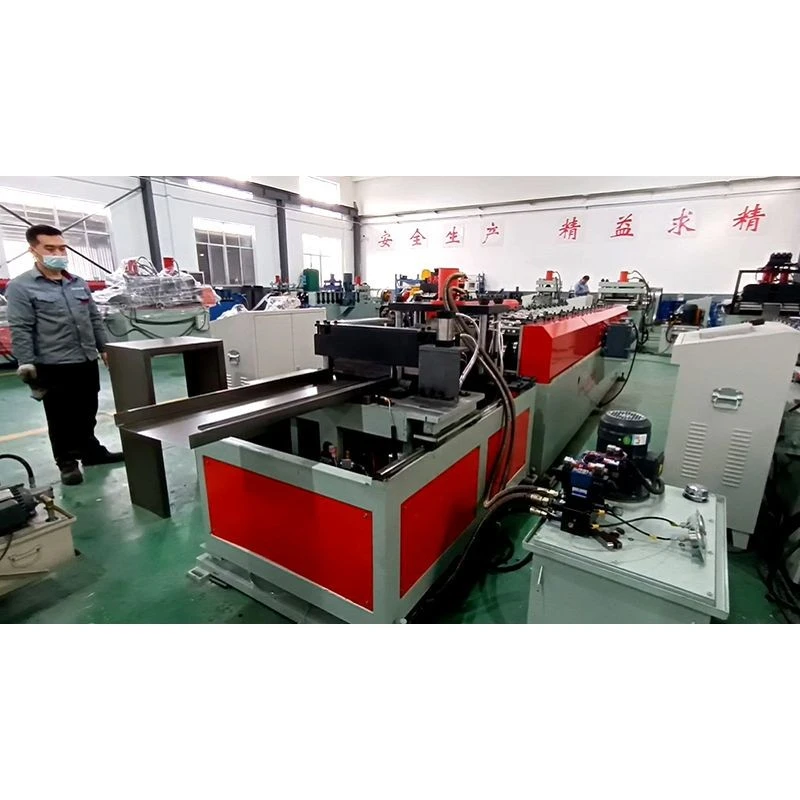

Tsawg Voltage Switchgear Ntau Lawm Kab
Low Voltage Switchgear Production Line yog cov kab ntau lawm uas siv tau tshwj xeeb tsim los rau ib qho -daim molding ntawm qis-voltage switchgear txee. Cov kab sib txuas ua ke uncoiling, leveling, servo noj, nruam xuas nrig ntaus, siab -precision yob txoj kev, ntev txiav, thiab tsis siv neeg dabtsi yog khoov. Cov txheej txheem khiav yog: uncoiling → leveling → pub → xuas nrig ntaus → sib sau → dabtsi yog khoov thiab txiav → tau txais, ua tiav tas mus li, tag nrho automated ntau lawm los ntawm steel coils kom tiav U- zoo li lub txee. Cov cuab yeej siv Cr12 CNC machined rollers, gearbox kis tau tus mob, Mitsubishi PLC tswj qhov system, thiab ib tug touchscreen tib neeg- tshuab interface. Tsuas yog ib tus neeg ua haujlwm yuav tsum tau ua, nrog rau qhov ceev ntawm 1-2 txee / feeb thiab ib hnub tso zis ntawm 800{15}}1200 units. Cov cuab yeej txhawb kev ywj pheej hloov lub txee qhov ntev thiab sib xws nrog cov khoom siv hluav taws xob tsawg-voltage switchgear txee xws li GGD, GCK, thiab MNS. Non-standard customization kuj muaj raws li cov neeg siv khoom xav tau.
Technical Specifications
|
Khoom npe |
Tsawg Voltage Switchgear Ntau Lawm Kab |
|
|
Khoom Specifications |
Q235 txias- dov sawb steel, galvanized sawb hlau |
|
|
Khoom Thickness |
1.2 → 1.5mm (customizable) |
|
|
Ntau lawm ceev |
1-2 pcs / min |
|
|
Khoom Specifications |
Lub thawv loj: 300 * 400-1800 * 2000 (Customizable) |
|
|
Lub thawv qhov tob |
Customizable |
|
|
Voltage Parameters |
380V / 415V, 50Hz, 3 theem |
|
|
Cua Source |
0.5 m³ / min; Siab: 0.7MPa |
|
|
Roll Khoom |
Cr12 CNC tshuab; quenched mus rau ib tug hardness ntawm HRC58℃-60 degree |
|
|
Tsav Tsav |
Variable zaus tsav tsav |
|
|
Tag nrho lub cev muaj zog |
25 kwv |
|
|
Txiav Tuag Khoom |
Cr12MOV |
|
|
Hom kis tau tus mob |
Gearbox |
|
|
Txoj kev txiav |
Hydraulic txiav |
|
|
Txiav Dimension Tolerance |
Tsawg dua los yog sib npaug rau ± 0.5mm (Length Tsawg dua lossis sib npaug rau 1000mm) |
|
|
Kev Ua Haujlwm |
Kov npo tib neeg - tshuab interface |
|
|
Hluav taws xob tswj |
Mitsubishi PLC tswj qhov kev pab cuam |
|
|
Fotoage Space |
28 * 2 * 3m (ntev × dav × qhov siab) |
|
Khoom zoo
- Precision guaranteed, txuam cov khoom siv installation yuav tsum. Hydraulic txiav dimensional kam rau ua yog tswj nyob rau hauv tsawg dua los yog sib npaug rau ± 0.5mm (ntev Tsawg tshaj los yog sib npaug rau 1000mm). Precise txee verticality thiab ntug parallelism thaum lub sij hawm tsim kom muaj tseeb qhov chaw ntawm busbar mounting qhov thiab hluav taws xob tivthaiv mounting kab teeb, tsis txhob cuam tshuam cov teeb meem installation thiab tooj liab busbar misalignment teeb meem tshwm sim los ntawm txee dimensional deviations.
- Ua ntej- teeb tooj liab busbar routing qhov. Lub tshuab stamping tuaj yeem ua ntej- teeb lub qhov txuas thiab los ntawm qhov nyob rau sab saum toj, hauv qab, thiab sab vaj huam sib luag ntawm lub txee raws li lub ntsiab busbar thiab ceg busbar routing. Qhov luaj li cas thiab txoj hauj lwm ntawm lub qhov yog precisely positioned raws li tus neeg muas zaub lub tswv yim hluav taws xob. Tsis tas yuav tsum muaj qhov qhib qhov drilling thaum nyob ntawm - qhov chaw sib dhos; kev xaim tuaj yeem raug xa ncaj qha, ua kom muaj kev nyab xeeb thiab txhim kho kev sib dhos ua haujlwm.
- Hnyav- lub luag haujlwm gearbox tsav, txhawj xeeb-dawb tuab phaj sib sau. Lub thickness ntawm qis-voltage switchgear phaj yog feem ntau 1.5-2.0mm, nrog rau qee qhov load-cov kabmob qhov chaw ncav cuag 2.5mm. Lub ntsiab chav tsev siv gearbox kis tau tus mob es tsis txhob siv txoj siv, uas muaj zog load-bearing muaj peev xwm thiab tsis muaj slippage. Ua ke nrog cov tawv tawv tawv nrog HRC58℃-60 degree, nws ua kom muaj tseeb ntawm cov phaj tuab thiab kev tswj xyuas kom zoo thaum lub sij hawm dov, thiab plaub fab ntawm lub txee yog nruj nreem kaw tsis muaj qhov khoob.

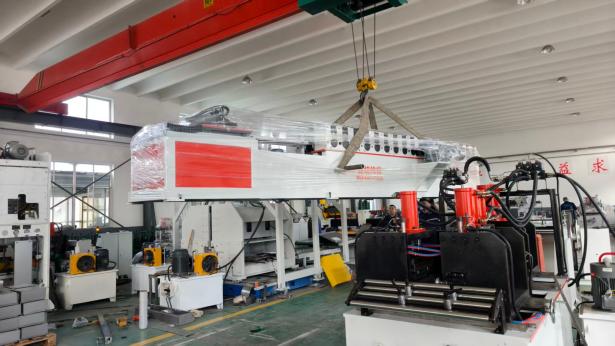

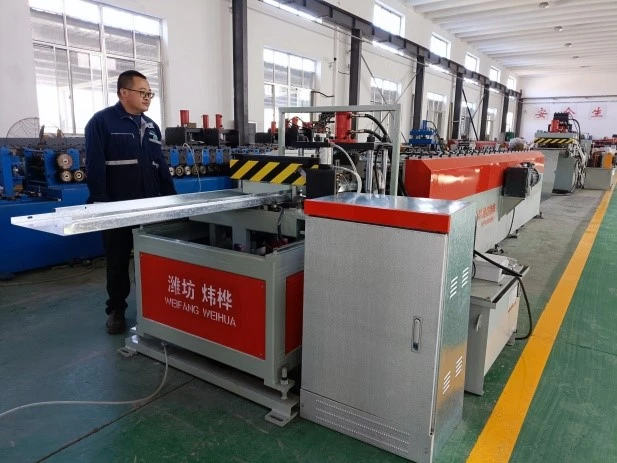

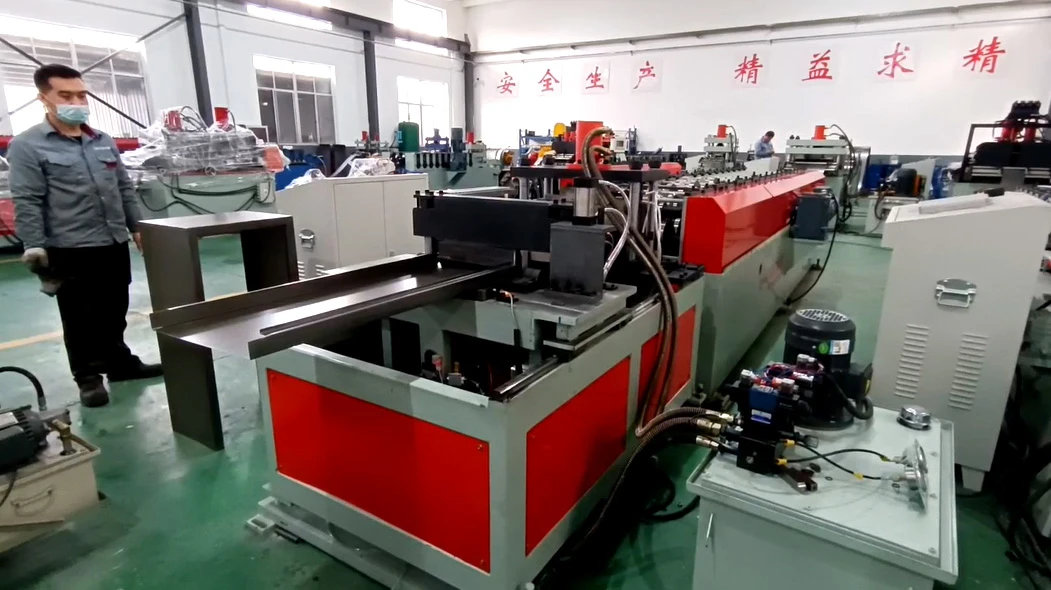

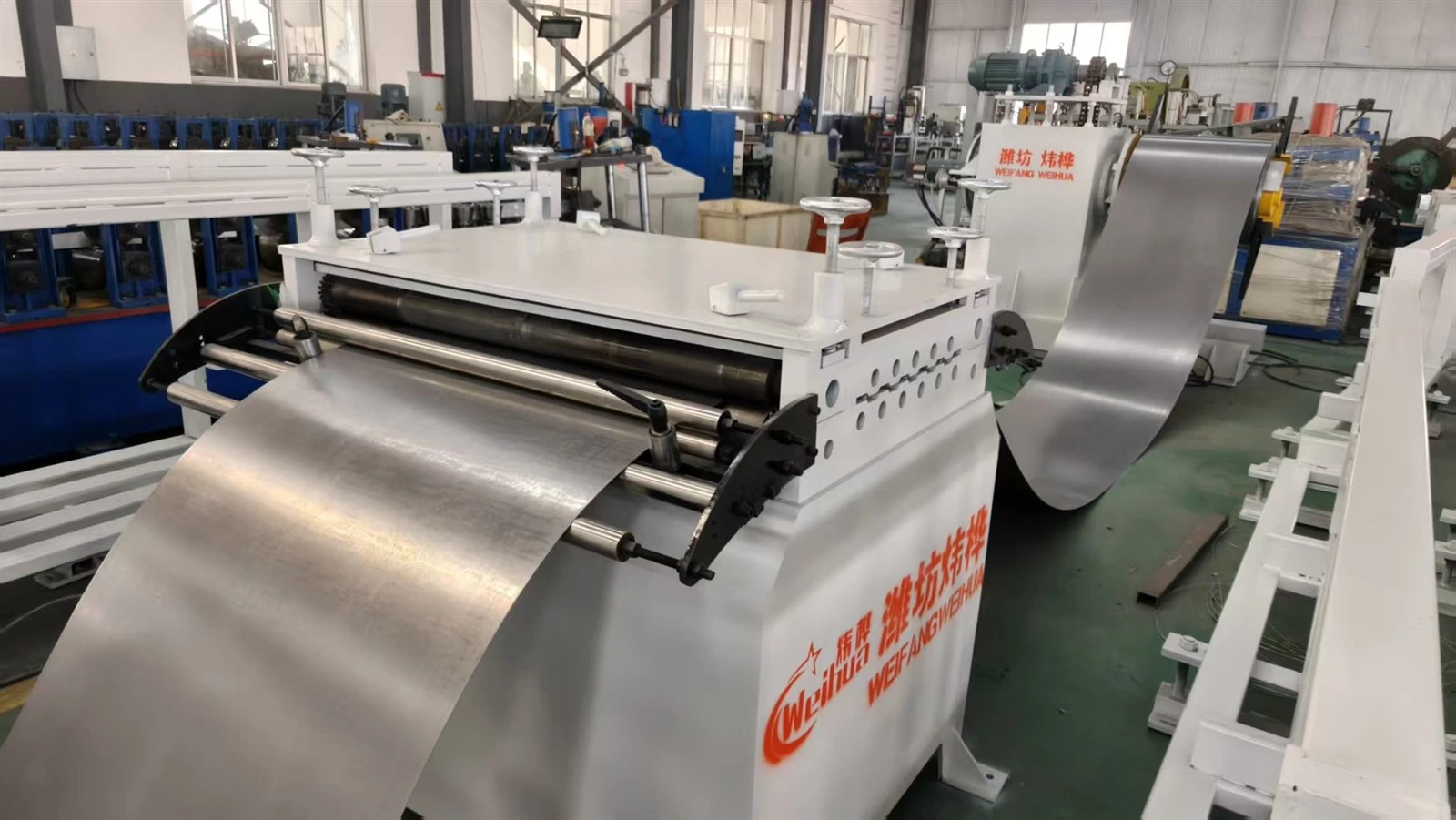

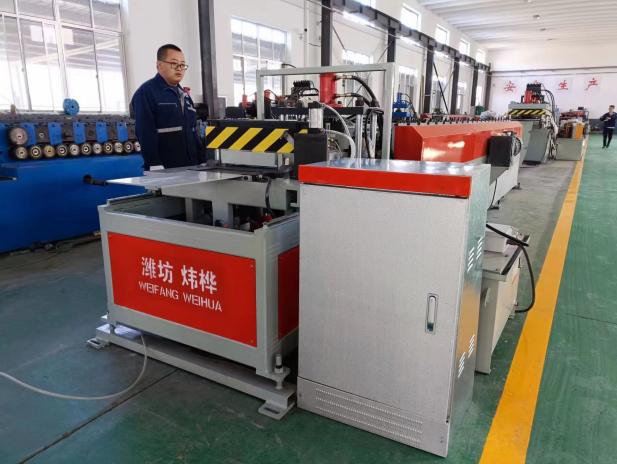

Factory duab
Shipping duab
Cov neeg tuaj xyuas
FAQ
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas nyob hauv Weifang, Suav. Nws muaj ntau tshaj nees nkaum pawg ntawm cov cuab yeej siv siab heev, suav nrog lub chaw tshiab precision machining, NC lathes, CNC xaim EDM cov cav tov, thiab lub tsheb loj profile dabtsi yog khoov kuaj platform. Koj tuaj yeem tuaj xyuas peb lub Hoobkas txhua lub sijhawm.
Q: Puas yog U-cov khoom zoo li cov khoom tsim los ntawm cov kab ntau lawm qauv?
A: Cov cuab yeej txhawb kev hloov pauv hloov tau yooj yim, xws li 300 × 400 txog 1800 × 2000 (customizable). Tus qauv qis-voltage switchgear xws li GGD (dav × qhov tob × qhov siab: 600 × 600 × 2200, 800 × 800 × 2200, thiab lwm yam) tuaj yeem tsim ncaj qha. Nws kuj txhawb kev hloov pauv hloov hauv qhov tob kom haum rau qhov sib txawv ntawm qhov sib txawv ntawm qhov yuav tsum tau ua.
Q: Dab tsi yog qhov txawv ntawm qhov qis -voltage switchgear ntau lawm kab thiab siab -voltage switchgear ntau lawm kab?
A: Ob qhov sib txawv hauv txee qauv thiab qhov ntev. Tsawg-voltage switchgear feem ntau yog 2200mm siab thiab 600-1000mm sib sib zog nqus, yuav tsum muaj kev teeb tsa sab hauv ntawm ntau lub tshuab hluav taws xob thiab cov tooj liab busbars. Qhov no xav tau ntau qhov chaw thiab qhov sib txuas hauv lub txee, tab sis cov ntawv hlau tuab feem ntau yog 1.5-2.0mm. High-voltage switchgear yog loj dua, muaj ntau dua rwb thaiv tsev yuav tsum tau, thiab ib tug complex txee qauv.
Cim npe nrov: Tuam Tshoj low voltage switchgear ntau lawm kab manufacturers, hoobkas
