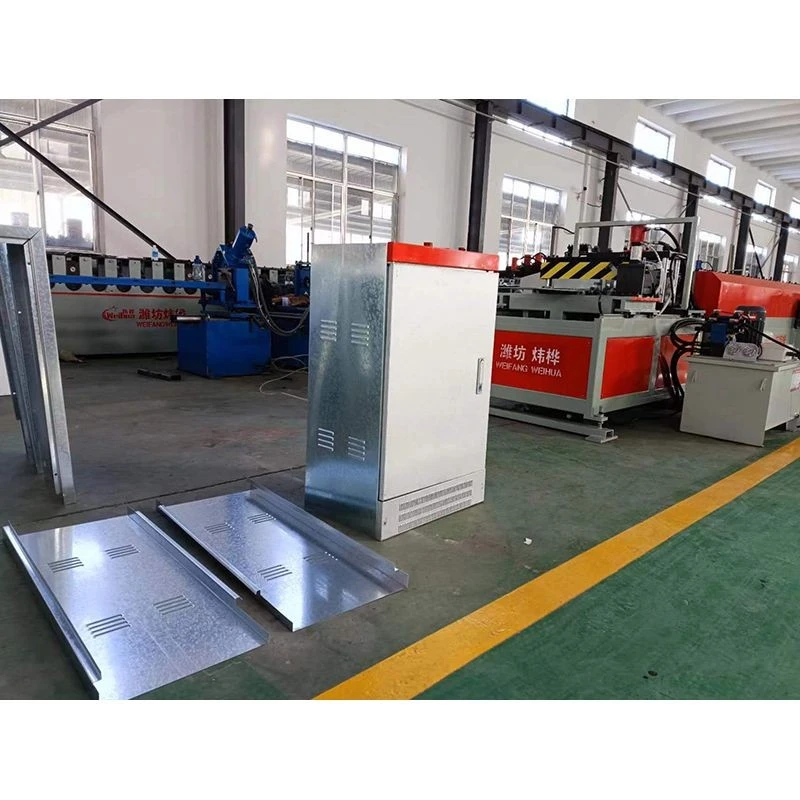

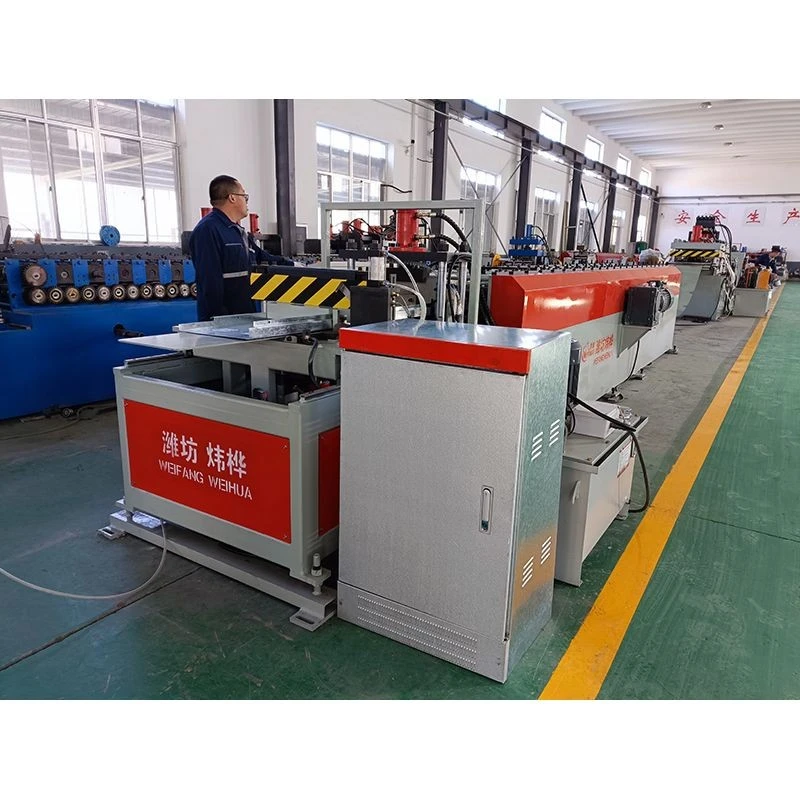

Fais fab txee ntau lawm kab
Lub hwj chim txee ntau lawm kab yog ib tug tag nrho automated ntau lawm kab tshwj xeeb tsim los rau ib tug -daim molding ntawm lub hwj chim txee. Cov txee fais fab feem ntau yog 1800-2200mm siab thiab 400-800mm sib sib zog nqus, thiab xav tau kev teeb tsa ntawm cov khoom siv hluav taws xob xws li contactors, thermal relays, thiab zaus hloov pauv, xav tau lub zog siab thiab kev ua haujlwm kub. Cov kab sib txuas ua ke uncoiling, leveling, servo noj, nruam xuas nrig ntaus, high-precision yob txoj kev, ntev txiav, thiab tsis siv neeg dabtsi yog khoov cov txheej txheem kom tau raws li qhov xav tau ntawm cov khoom siv fais fab. Cov cuab yeej siv Cr12 CNC machined rollers, gearbox kis tau tus mob, Mitsubishi PLC tswj qhov system, thiab touchscreen tib neeg-tshuab interface rau kev ua haujlwm yooj yim, txuag nqi zog thiab txhim kho kev tsim khoom.
Technical Specifications
|
Khoom npe |
Fais fab txee ntau lawm kab |
|
|
Khoom Specifications |
Q235 txias- dov sawb steel, galvanized sawb hlau |
|
|
Khoom Thickness |
1.2 → 1.5mm (customizable) |
|
|
Ntau lawm ceev |
1-2 pcs / min |
|
|
Khoom Specifications |
Lub thawv loj: 300 * 400-1800 * 2000 (Customizable) |
|
|
Lub thawv qhov tob |
Customizable |
|
|
Voltage Parameters |
380V / 415V, 50Hz, 3 theem |
|
|
Cua Source |
0.5 m³ / min; Siab: 0.7MPa |
|
|
Roll Khoom |
Cr12 CNC tshuab; quenched mus rau ib tug hardness ntawm HRC58℃-60 degree |
|
|
Tsav Tsav |
Variable zaus tsav tsav |
|
|
Tag nrho lub cev muaj zog |
25 kwv |
|
|
Txiav Tuag Khoom |
Cr12MOV |
|
|
Hom kis tau tus mob |
Gearbox |
|
|
Txoj kev txiav |
Hydraulic txiav |
|
|
Txiav Dimension Tolerance |
Tsawg dua los yog sib npaug rau ± 0.5mm (Length Tsawg dua lossis sib npaug rau 1000mm) |
|
|
Kev Ua Haujlwm |
Kov npo tib neeg - tshuab interface |
|
|
Hluav taws xob tswj |
Mitsubishi PLC tswj qhov kev pab cuam |
|
|
Fotoage Space |
28 * 2 * 3m (ntev × dav × qhov siab) |
|
Khoom zoo

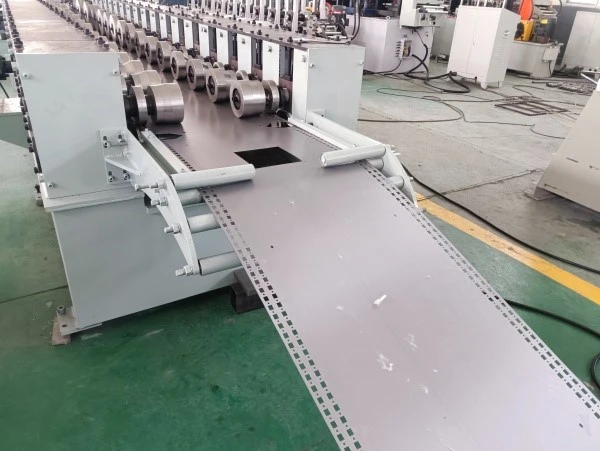

- Cr12 rollers nrog quenching kev kho mob kom lub neej ntev kev pab cuam. Cov txheej txheem yog CNC machined los ntawm Cr12 pwm steel thiab quenched mus rau ib tug hardness ntawm HRC58℃-60%, exhibiting zoo heev hnav tsis kam thiab qaug zog kuj. Raws li kev ua haujlwm siab -load ua haujlwm nrog kev tsim khoom txhua hnub ntawm 1000 lub tsev, cov chais muaj lub neej ua haujlwm ntev, txo cov nqi tu mus ntev.
- Mitsubishi PLC + Kov Screen: Ua haujlwm yooj yim. Kev tswj hluav taws xob siv lub Mitsubishi PLC ua ke nrog tus kov npo tib neeg- tshuab interface. Tag nrho cov txheej txheem tsis (qhov ntev casing, xuas nrig ntaus txoj haujlwm, ceev ceev, thiab lwm yam) tuaj yeem teeb tsa ncaj qha thiab khaws cia ntawm qhov screen. Thaum hloov cov khoom, cov qauv tsis sib xws tuaj yeem rov qab tau nrog ib qho nyem, tshem tawm qhov xav tau ntawm phau ntawv qhia cov khoom siv los ntawm cov khoom, ua kom yooj yim rau kev ua haujlwm thiab zam kev ua yuam kev ntawm tib neeg.

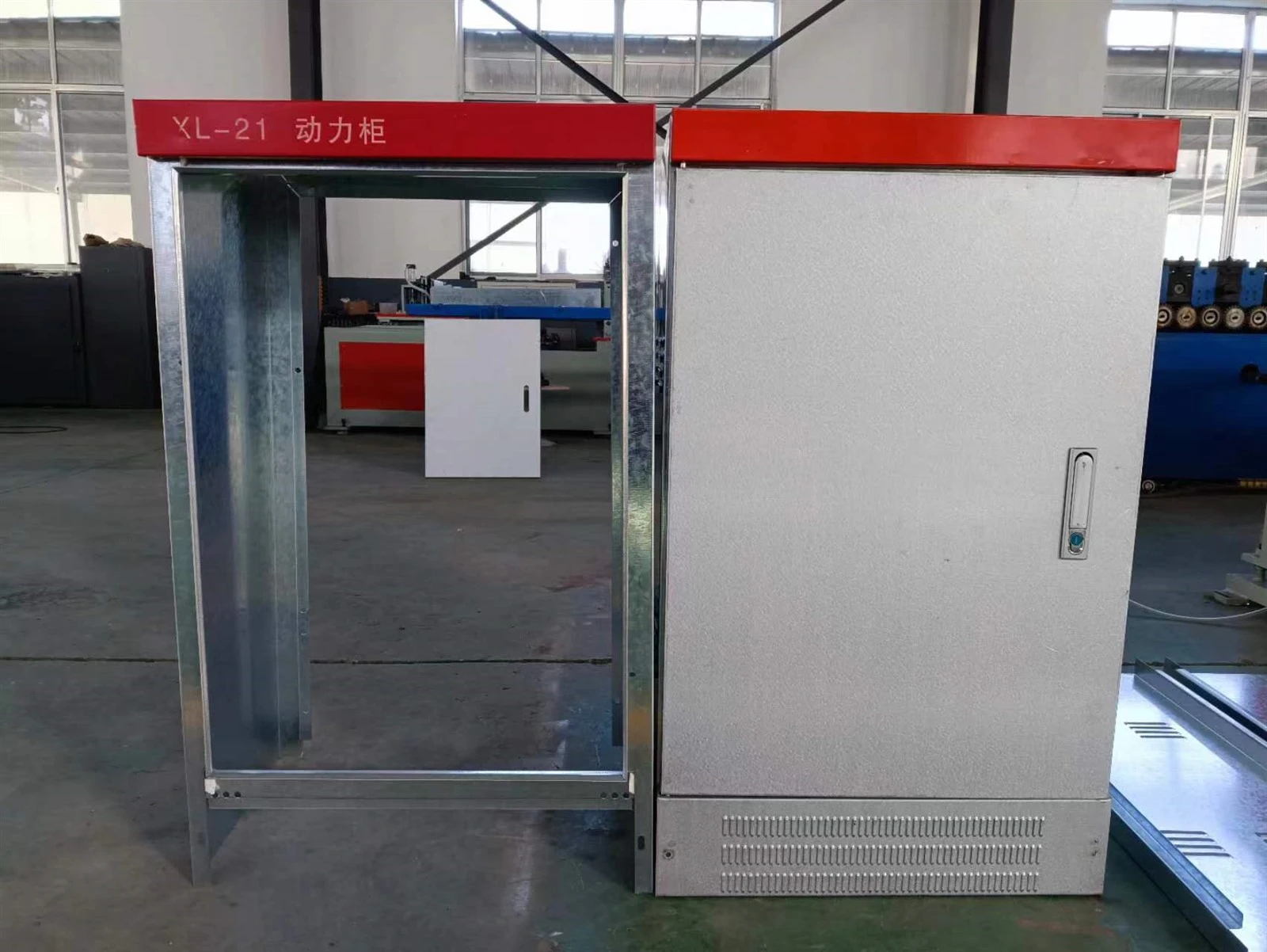

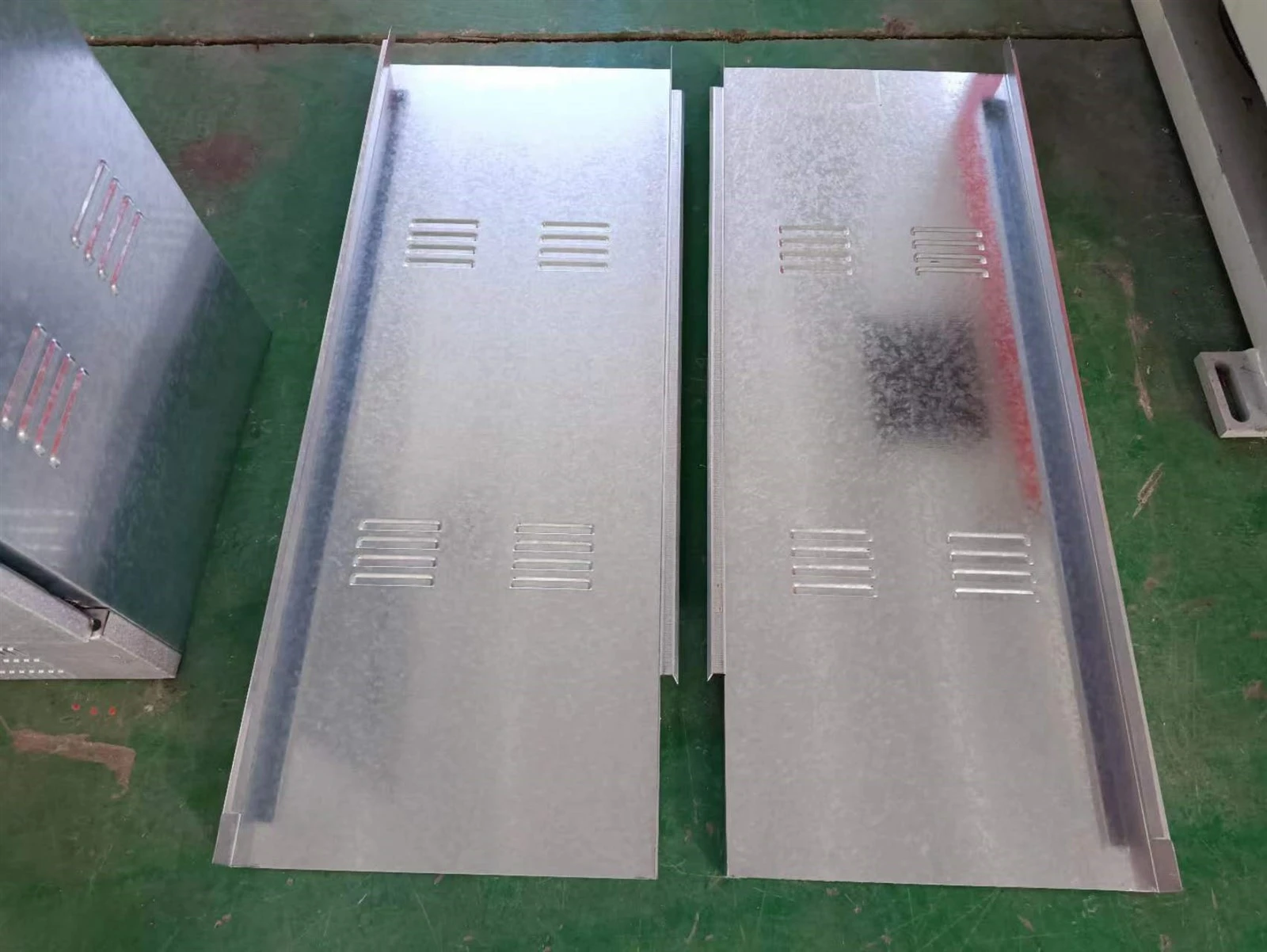

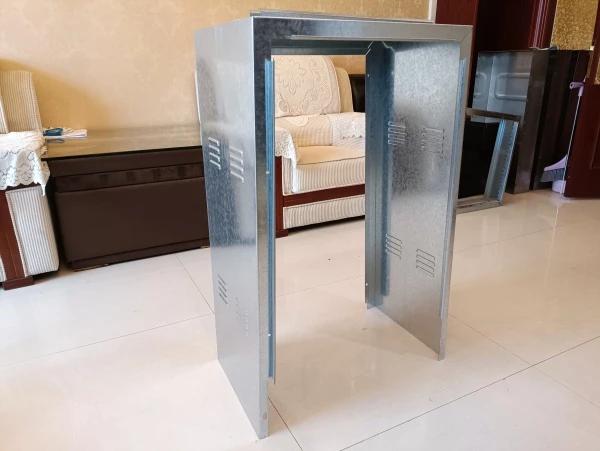

- Nrog rau ntau yam ntawm qhov ntev adjustable thiab customizable qhov tob, cov cuab yeej txhawb kev hloov pauv dawb ntawm lub dav hlau vaj tsev qhov ntev ntawm 300 × 400 txog 1800 × 2000, npog tag nrho cov khoom ntawm cov khoom me me rau cov khoom siv hluav taws xob loj. Lub txee qhov tob kuj yog customizable; ib lub dav hlau specification tuaj yeem phim ntau qhov kev xaiv qhov tob kom tau raws li tus kheej xav tau ntawm cov neeg siv khoom sib txawv thiab daim ntawv thov scenarios. Lub tshuab stamping tuaj yeem raug teeb tsa nrog lub qhov txuas thiab txuas lub qhov raws li xav tau, ua kom haum raws li qhov tsis yog - tus qauv txiav txim.

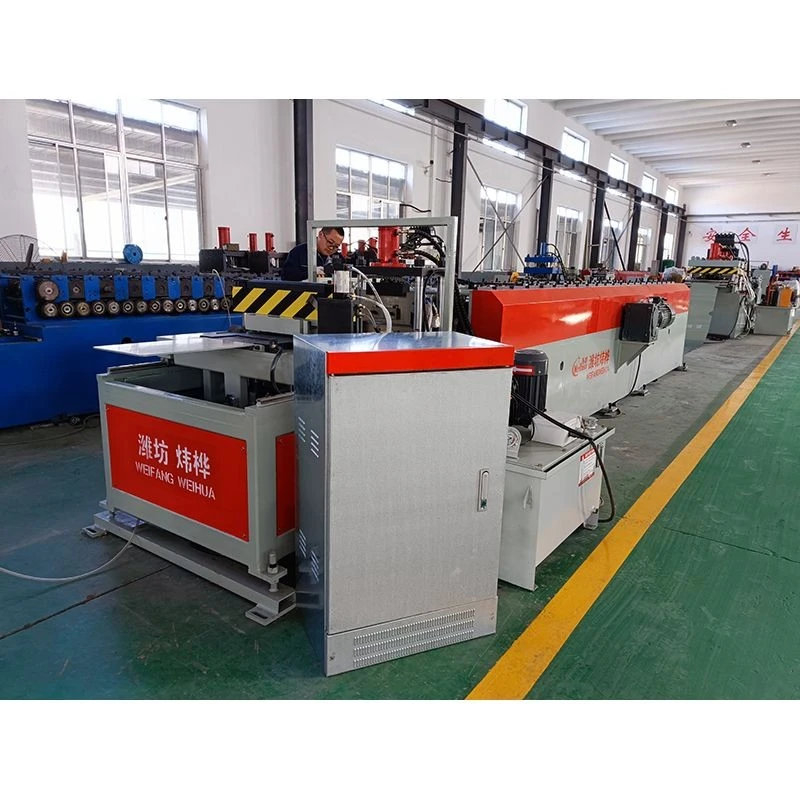

Factory duab

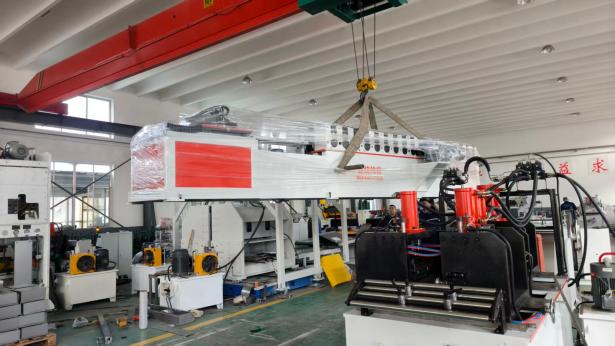

Shipping duab
Cov neeg tuaj xyuas
FAQ
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas nyob hauv Weifang, Suav. Nws muaj ntau tshaj nees nkaum pawg ntawm cov cuab yeej siv siab heev, suav nrog lub chaw tshiab precision machining, NC lathes, CNC xaim EDM cov cav tov, thiab lub tsheb loj profile dabtsi yog khoov kuaj platform. Koj tuaj yeem tuaj xyuas peb lub Hoobkas txhua lub sijhawm.
Q: Dab tsi yog qhov sib txawv ntawm lub hwj chim tswj txee cov kab ntau lawm thiab cov khoom siv hluav taws xob tsis tu ncua?
A: Qhov sib txawv tseem ceeb nyob hauv lub txee qhov ntev, cov ntawv hlau tuab, thiab kev teeb tsa ua haujlwm. Cov txee tswj fais fab feem ntau yog 1800-2200mm siab thiab 400-800mm sib sib zog nqus, ntau dua li cov thawv xa khoom. Lawv yuav tsum tau ua kom haum cov khoom loj xws li cov zaus hloov pauv thiab cov contactors, xav tau ntau dua qhov cua tshuab thiab txee qhov tob. Cov kab ntau lawm no yog tsim tshwj xeeb rau cov khoom siv hluav taws xob loj loj thiab qhov xav tau rau kev tsim khoom loj ntawm cov qhov cua, thaum lub sij hawm faib lub thawv cov kab ntau lawm tsom rau kev tsim cov khoom me me.
