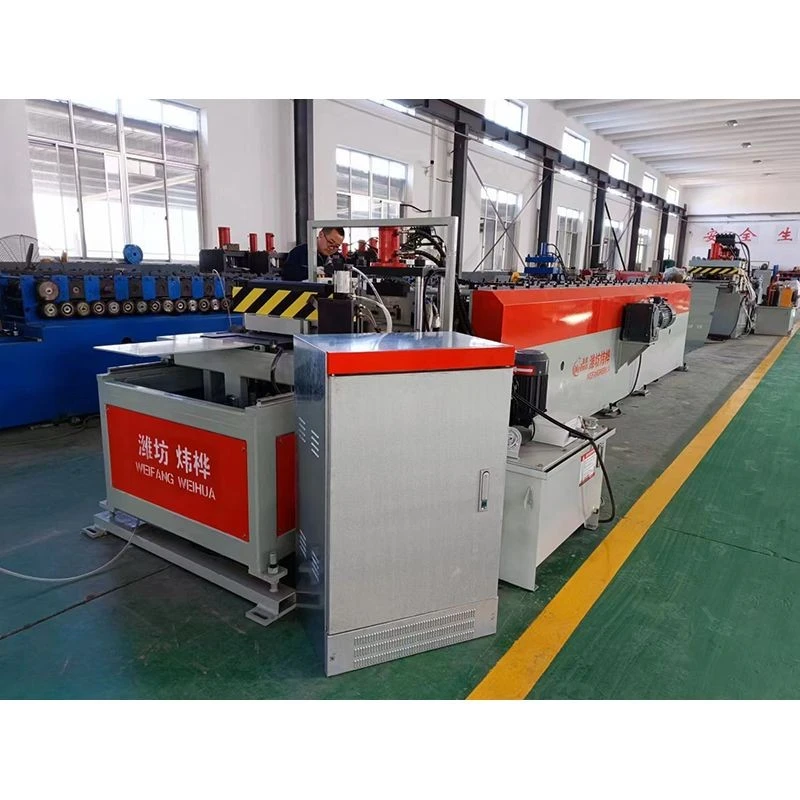

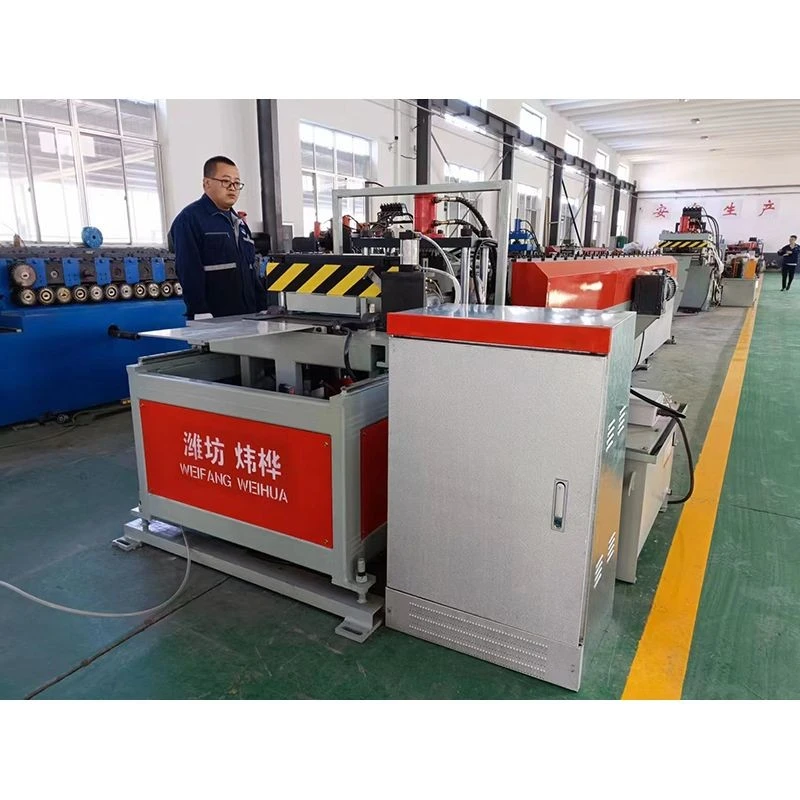

Hluav taws xob Enclosure Manufacturing Line
Cov Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob yog cov kab ntau lawm uas siv tau rau kev tsim cov hlau enclosures rau ntau yam khoom siv hluav taws xob. Cov khoom siv hluav taws xob yog cov ntsiab lus dav dav rau cov tsev nyob ntawm qhov siab thiab tsis tshua muaj hluav taws xob hloov hluav taws xob, tswj cov khoom, cov thawv xa khoom, cov thawv ntawv davhlau ya nyob twg, thiab lwm yam khoom siv hluav taws xob, npog ntau qhov ntau thiab tsawg los ntawm cov thawv me me mus rau cov khoom siv hluav taws xob loj. Cov cuab yeej siv Cr12 CNC machining rollers, gearbox tsav, Mitsubishi PLC tswj qhov system, thiab tus kov npo tib neeg- tshuab interface. Nws tsuas yog xav tau ib tus neeg ua haujlwm nkaus xwb thiab tsim 1-2 cov ntaub thaiv ib feeb, nrog rau cov zis txhua hnub ntawm 800-1200 units. Cov cuab yeej txhawb kev hloov pauv hloov pauv qhov loj me, xws li 300 × 400 txog 1800 × 2000 (customizable), ua tau raws li qhov xav tau ntawm ntau cov khoom siv hluav taws xob los ntawm cov thawv xa khoom thiab cov khoom siv hluav taws xob mus rau qhov siab thiab qis voltage switchgear.
Technical Specifications
|
Khoom npe |
Hluav taws xob Enclosure Manufacturing Line |
|
|
Khoom Specifications |
Q235 txias-rolled strip steel, galvanized strip steel |
|
|
Khoom Thickness |
1.2 → 1.5mm (customizable) |
|
|
Ntau lawm ceev |
1-2 pcs / min |
|
|
Khoom Specifications |
Lub thawv loj: 300 * 400-1800 * 2000 (Customizable) |
|
|
Lub thawv qhov tob |
Customizable |
|
|
Voltage Parameters |
380V / 415V, 50Hz, 3 theem |
|
|
Cua Source |
0.5 m³ / min; Siab: 0.7MPa |
|
|
Roll Khoom |
Cr12 CNC tshuab; quenched mus rau ib tug hardness ntawm HRC58℃-60 degree |
|
|
Tsav Tsav |
Variable zaus tsav tsav |
|
|
Tag nrho lub cev muaj zog |
25 kwv |
|
|
Txiav Tuag Khoom |
Cr12MOV |
|
|
Hom kis tau tus mob |
Gearbox |
|
|
Txoj kev txiav |
Hydraulic txiav |
|
|
Txiav Dimension Tolerance |
Tsawg dua lossis sib npaug rau ± 0.5mm (Length Tsawg dua lossis sib npaug rau 1000mm) |
|
|
Kev Ua Haujlwm |
Kov npo tib neeg- tshuab interface |
|
|
Hluav taws xob tswj |
Mitsubishi PLC program tswj |
|
|
Fotoage Space |
28 * 2 * 3m (ntev × dav × qhov siab) |
|
Khoom zoo
Universal Platform, Ib Lub Tshuab Tsim Tag Nrho Series
Cov kab ntau lawm no yog tsim los nrog lub platform thoob ntiaj teb, sib xws nrog kev tsim cov khoom siv hluav taws xob tag nrho, los ntawm cov thawv xa khoom mus rau cov khoom siv hluav taws xob loj. Los ntawm kev kho cov txheej txheem ntawm tus tswv tsev thiab hloov cov xuas nrig ntaus tuag, ib lub tshuab tuaj yeem hloov pauv ntawm kev tsim cov khoom ntim khoom sib txawv ntawm qhov sib txawv thiab qhov kev teeb tsa, uas ua rau kev siv cov khoom siv ntau dua thiab rov qab los ntawm kev nqis peev piv rau kev ua haujlwm ib leeg - qauv tsim.
Ib -Pib Moulding kom muaj zog dua

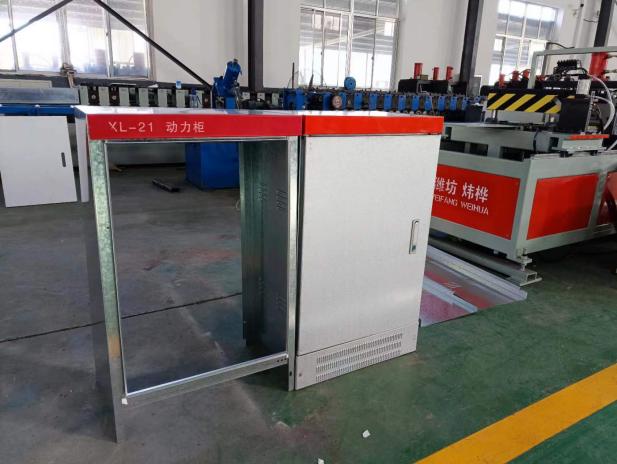

Cov kab ntau lawm siv ib qho - txheej txheem molding, ncaj qha yob- khoov ib daim ntawv rau hauv ib lub voj voos plaub - sab, tshem tawm cov vuam seams thiab cov ntsiab lus kev ntxhov siab los ntawm cov txheej txheem vuam tsoos. Ib qho -daim moulded enclosure qauv yog qhov muaj zog dua thiab muaj zog tiv thaiv deformation, ua rau nws tshwj xeeb tshaj yog haum rau cov khoom siv hluav taws xob nrog cov khoom siv dag zog siab.
Hloov kho qhov loj me kom hloov mus rau qhov tsis yog -Txoj kev xaj xaj
Cov cuab yeej txhawb kev hloov pauv pub dawb ntawm qhov thaiv qhov ntev, qhov dav, thiab qhov siab, npog thaj tsam ntawm 300 × 400 txog 1800 × 2000 hli, nrog qhov tob kuj tuaj yeem kho tau. Lub tshuab stamping tuaj yeem raug teeb tsa nrog cov lej sib txawv thiab txoj haujlwm ntawm cov hlau qhov thiab txuas lub qhov raws li xav tau, teb sai sai rau cov neeg siv khoom tsis yog - tus qauv kev cai yuav tsum tau ua thiab pab cov tuam txhab ua ntau yam kev txiav txim yam tsis muaj kev nqis peev ntawm cov cuab yeej cuab tam.

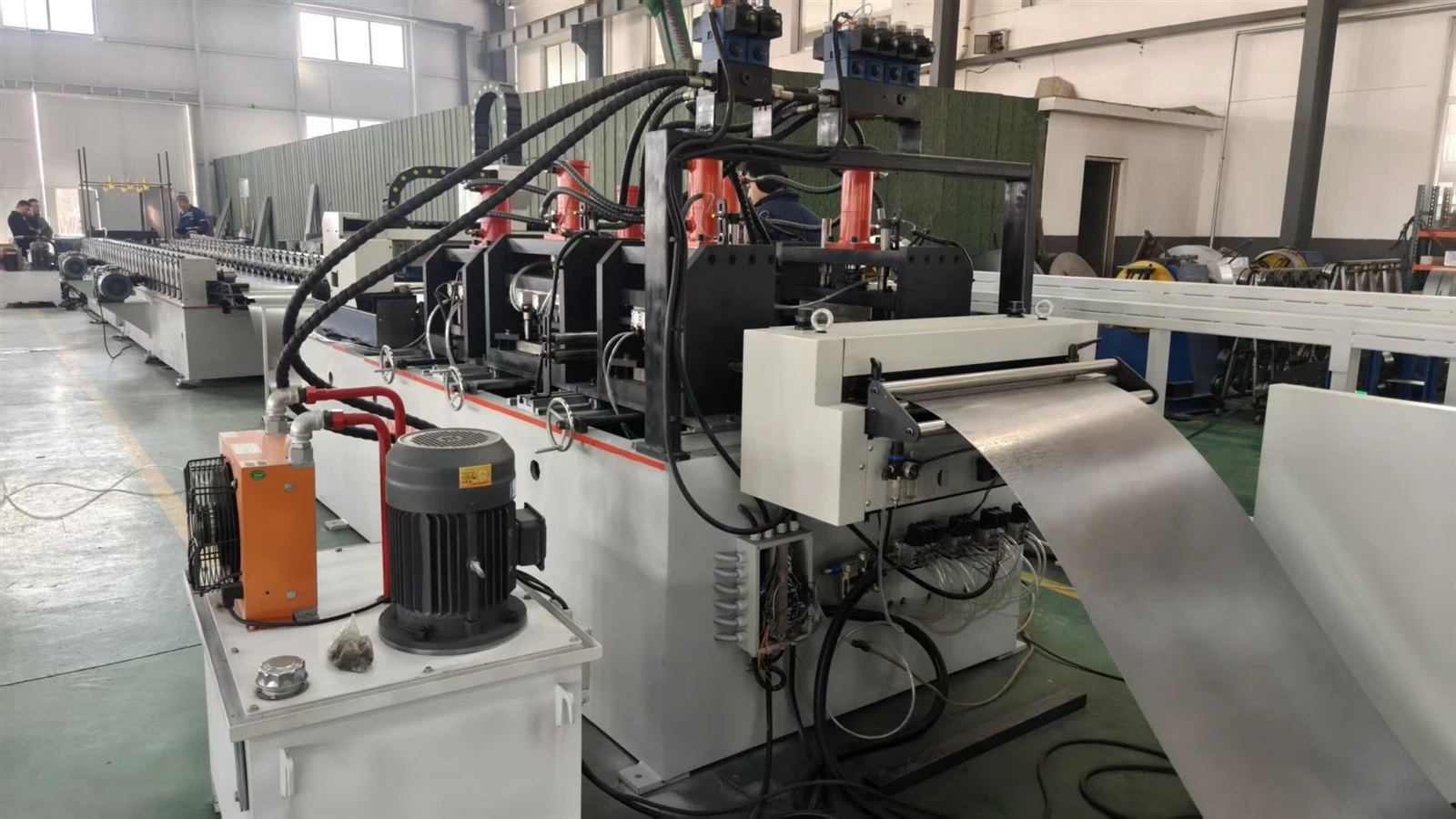

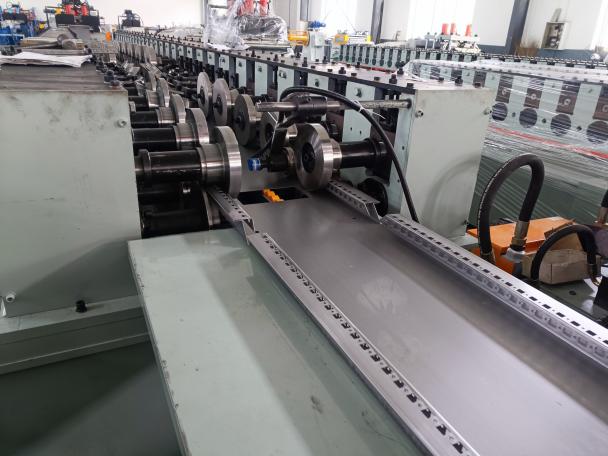

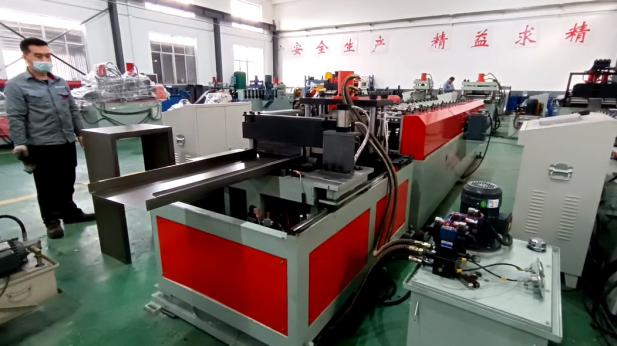

Factory duab

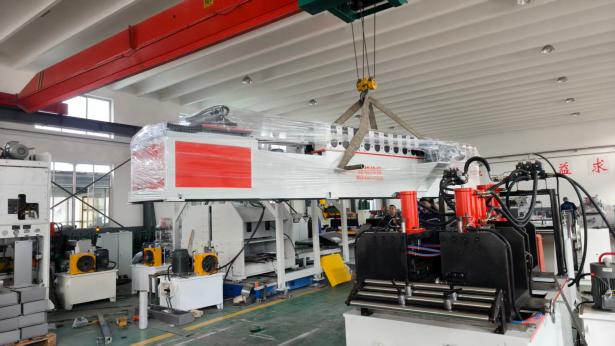

Shipping duab
Neeg tuaj xyuas
FAQ
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas nyob hauv Weifang, Suav. Nws muaj ntau tshaj nees nkaum pawg ntawm cov cuab yeej siv siab heev, suav nrog lub chaw tshiab precision machining, NC lathes, CNC xaim EDM cov cav tov, thiab lub tsheb loj profile dabtsi yog khoov xeem platform. Koj tuaj yeem tuaj xyuas peb lub Hoobkas txhua lub sijhawm.
Q: Lub zog siv ntawm cov kab ntau lawm yog dab tsi?
A: Tag nrho lub cev muaj zog ntawm cov cuab yeej yog 25kW. Qhov kev xav tau ntawm huab cua yog 0.5m³ / min ntawm lub siab ntawm 0.7MPa. Lub zog xav tau yog 380V / 415V, 50Hz peb-theem fais fab. Raws li kev tsim khoom txhua hnub ntawm 800-1200 plhaub, qhov kev siv hluav taws xob hauv ib chav yog qis dua li cov txheej txheem ua ntu ntu. Qhov no feem ntau yog vim kev ua haujlwm tsis tu ncua txo lub zog poob los ntawm cov khoom siv nquag pib thiab kaw, nrog rau kev siv hluav taws xob los ntawm kev tuav cov txheej txheem nruab nrab.
Q: Cov kab ntau lawm puas tuaj yeem ua cov hlau tsis zoo?
A: Tus qauv tsim kab teeb tsa yog tsim rau txias-rolled strip steel thiab galvanized strip steel. Customization yog muaj rau kev ua stainless hlau.
