Technical Specifications
|
Khoom npe |
Hluav taws xob txee box Cov kab ntau lawm |
|
|
Khoom Specifications |
Q235 txias-rolled strip steel, galvanized strip steel |
|
|
Khoom Thickness |
1.2 → 1.5mm (customizable) |
|
|
Ntau lawm ceev |
1-2 pcs / min |
|
|
Khoom Specifications |
Lub thawv loj: 300 * 400-1800 * 2000 (Customizable) |
|
|
Lub thawv qhov tob |
Customizable |
|
|
Voltage Parameters |
380V / 415V, 50Hz, 3 theem |
|
|
Cua Source |
0.5 m³ / min; Siab: 0.7MPa |
|
|
Roll Khoom |
Cr12 CNC tshuab; quenched mus rau ib tug hardness ntawm HRC58℃-60 degree |
|
|
Tsav Tsav |
Variable zaus tsav tsav |
|
|
Tag nrho lub cev muaj zog |
25 kwv |
|
|
Txiav Tuag Khoom |
Cr12MOV |
|
|
Hom kis tau tus mob |
Gearbox |
|
|
Txoj kev txiav |
Hydraulic txiav |
|
|
Txiav Dimension Tolerance |
Tsawg dua lossis sib npaug rau ± 0.5mm (Length Tsawg dua lossis sib npaug rau 1000mm) |
|
|
Kev Ua Haujlwm |
Kov npo tib neeg- tshuab interface |
|
|
Hluav taws xob tswj |
Mitsubishi PLC program tswj |
|
|
Fotoage Space |
28 * 2 * 3m (ntev × dav × qhov siab) |
|
Khoom zoo
Cov Txwj Laug Loj tsim nyob rau hauv ib kauj ruam
Hais txog qhov loj thiab tuab daim hlau cov yam ntxwv ntawm cov khoom siv hluav taws xob, cov khoom siv ua haujlwm hnyav - lub luag haujlwm yob tsim lub ntsiab chav tsev thiab lub zog khoov, sib koom ua ke ntau yam txheej txheem xws li tsoos shearing, sib dhos, vuam, thiab sib tsoo rau hauv ib chav tsev, ncaj qha tsim lub txee los ntawm cov hlau kauj hauv ib kauj ruam.

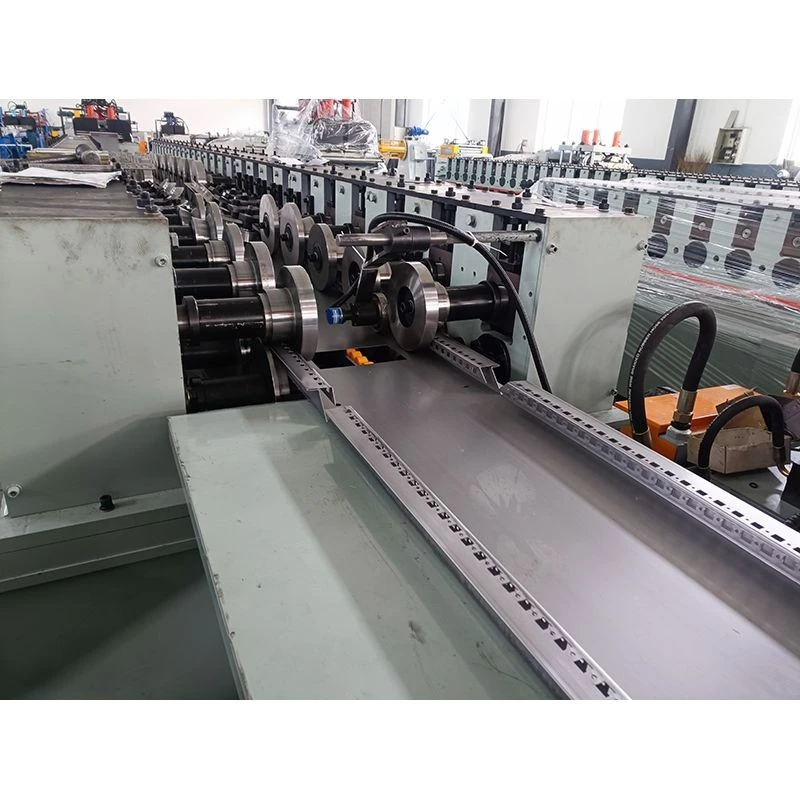

Dedicated Thick Plate Roll forming txheej txheem
Cov cuab yeej txhawb kev ua cov ntawv hlau ntawm 1.2-1.5mm (customizable rau cov tuab tuab). Cov txheej txheem txheej txheem yog CNC machined los ntawm Cr12 pwm steel, ua tiav hardness ntawm HRC58℃-60℃tom qab quenching kev kho mob, exhibiting zoo heev hnav tsis kam. Qhov no tiv thaiv cov menyuam nto hnav thiab deformation thaum ua cov phaj tuab, ua kom cov txee ruaj khov qhov tseeb ntawm lub sijhawm ntev.
Gearbox Tsav, Ample Power
Lub hauv paus tseem ceeb siv lub zog tsav gearbox, muab cov khoom muaj zog -cov kabmob muaj peev xwm, kev sib kis tau zoo, thiab tsis muaj kev swb. Qhov no ua kom cov synchronization thiab sib xws ntawm cov loj -section txee thaum lub sij hawm yob txoj kev, ua rau nws tshwj xeeb tshaj yog haum rau kev nruam siab - ceev ntau lawm ntawm tuab thiab dav txee.

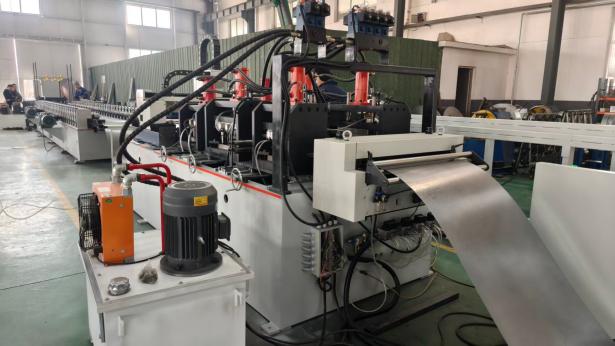

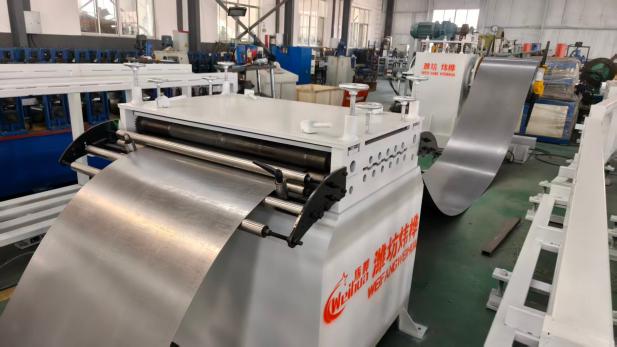

Factory duab

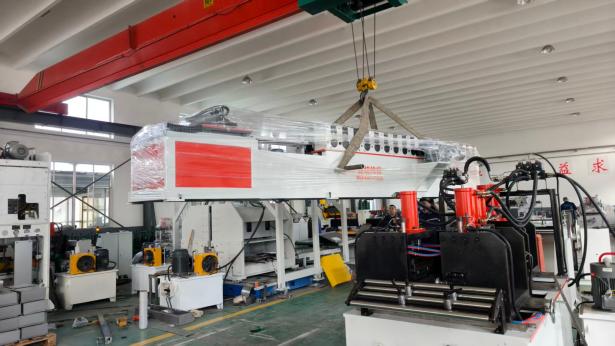

Shipping duab

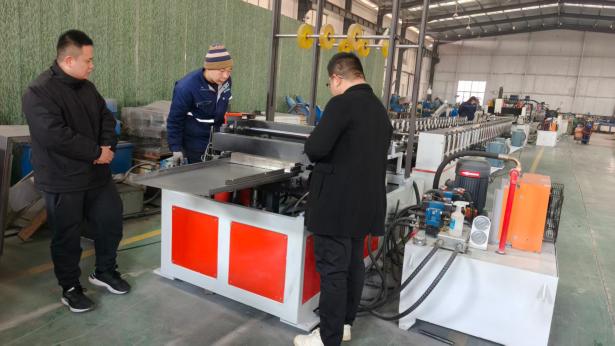

Neeg tuaj xyuas
FAQ
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas nyob hauv Weifang, Suav. Nws muaj ntau tshaj nees nkaum pawg ntawm cov cuab yeej siv siab heev, suav nrog lub chaw tshiab precision machining, NC lathes, CNC xaim EDM cov cav tov, thiab lub tsheb loj profile dabtsi yog khoov xeem platform. Koj tuaj yeem tuaj xyuas peb lub Hoobkas txhua lub sijhawm.
Q: Dab tsi yog qhov sib txawv ntawm cov txheej txheem tsim khoom ntawm cov khoom siv hluav taws xob thiab cov thawv xa khoom?
A: Cov khoom siv hluav taws xob hluav taws xob yog qhov loj dua thiab siv cov ntawv tuab tuab, yuav tsum muaj zog dua thiab lub zog los ntawm lub tshuab tsim. Cov kab ntau lawm no siv lub gearbox tsav thiab hnyav- cov khoom siv rau cov menyuam, tshwj xeeb tsim rau cov ntawv hlau tuab ntawm 1.2-1.5mm thiab siab dua. Cov rollers yog hardened rau HRC58℃-60 degree, ua kom ruaj khov ntawm cov khoom loj thiab ua kom muaj qhov tseeb thiab qhov zoo. Distribution box enclosures yog me me thiab nyias, ua rau cov txheej txheem tsis yooj yim.
Q: Dab tsi yog qhov yuav tsum tau ntawm qhov chaw thiab kev teeb tsa rau cov khoom siv?
A: Cov cuab yeej siv 28 × 2 × 3 meters (ntev × dav × qhov siab), nrog rau cov kab sib dhos kab teeb tsa. Lub zog xav tau yog 380V / 415V, 50Hz, peb-theem fais fab, nrog rau tag nrho lub cev muaj zog ntawm 25kW. Huab cua yuav tsum yog 0.5m³ / min, siab 0.7MPa. Nws raug pom zoo tias lub tsev tsim khoom yuav tsum muaj tsawg kawg yog 30 meters ntev thiab tsawg kawg yog 5 meters dav (nrog rau txoj kev khiav haujlwm).
